Standard Vertical Air Receivers

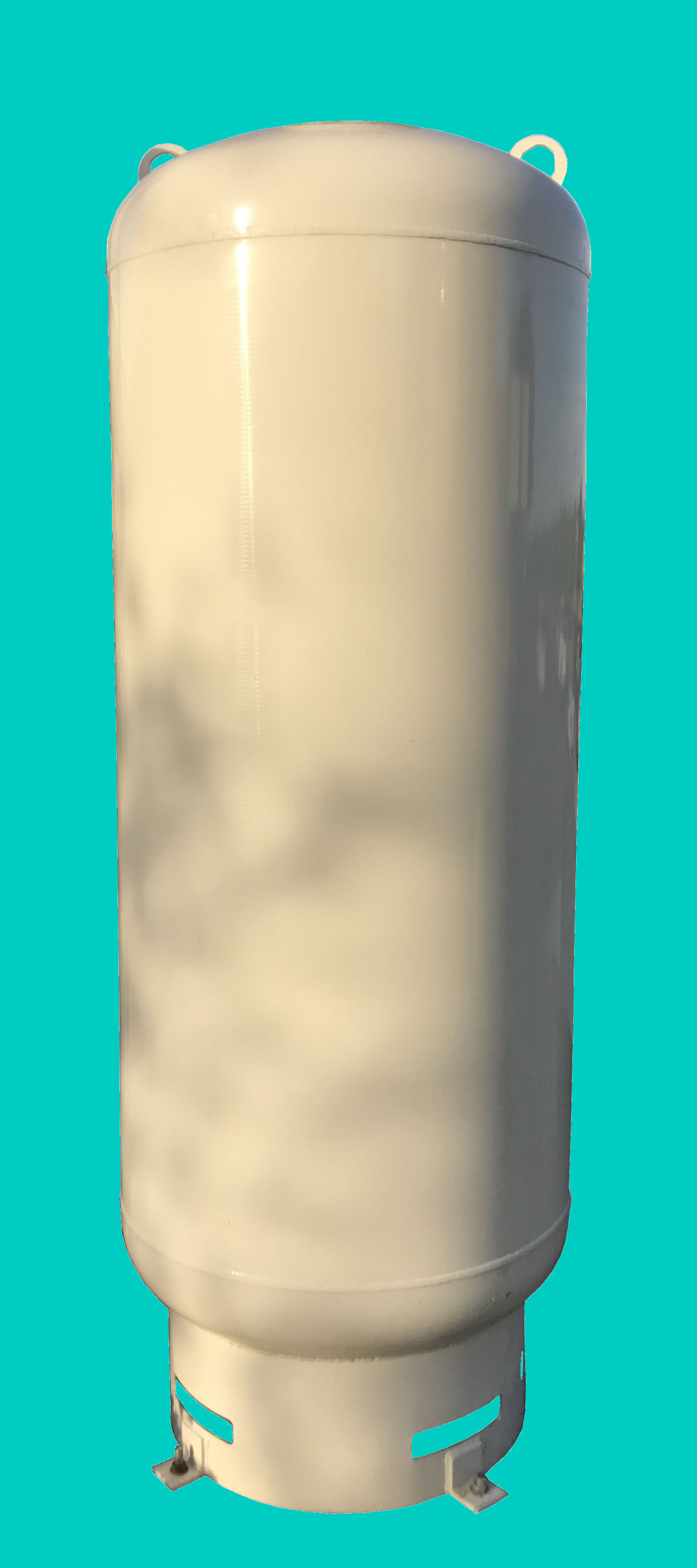

Vertical Air Receiver Photo

Product Photo (Click to View)

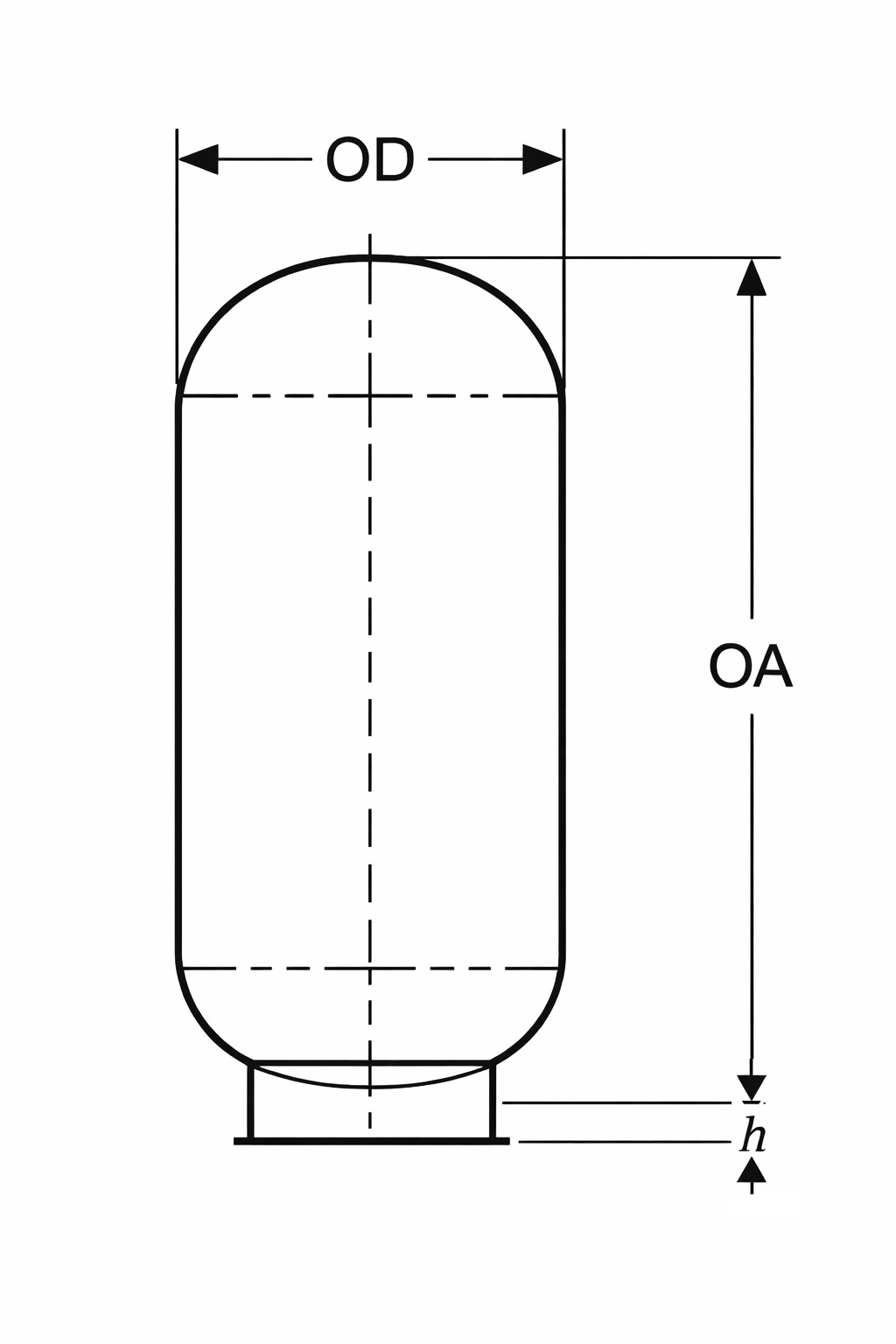

Technical Drawing

Technical Drawing (Click to View)

Features & Benefits

Our standard vertical air receivers are built in accordance with the ASME Boiler and Pressure Vessel Code. Designed for industrial applications, these tanks save floor space while providing essential air storage and condensate separation.

  • Code Compliance:  ASME Section VIII Div 1.
  • Finish:  Standard shop primer (Exterior). Special coatings like Epoxy or Galvanized available.
  • Access:  Inspection ports standard; Manways on larger vessels (42"+ dia).
  • Customization:  High pressure (up to 3000 PSI) and Stainless Steel (304/316) options available upon request.

Dimensional Specifications

Part Number Volume OD OA Max Pressure Weight
AVL-30-16-30030 Gallon16 Inch39 Inch300 psig115 lbs
AVR-30-16-30030 Gallon16 Inch39 Inch300 psig113 lbs
AVR-60-20-25060 Gallon20 Inch49 Inch250 psig176 lbs
AVR-60-20-30060 Gallon20 Inch49 Inch300 psig201 lbs
AVR-80-20-25080 Gallon20 Inch63 Inch250 psig216 lbs
AVR-80-20-30080 Gallon20 Inch63 Inch300 psig277 lbs
AVL-80-20-55080 Gallon20 Inch66 Inch550 psig507 lbs
AVR-120-24-200120 Gallon24 Inch65 Inch200 psig246 lbs
AVR-120-24-250120 Gallon24 Inch65 Inch250 psig302 lbs
AVR-120-24-300120 Gallon24 Inch65 Inch300 psig344 lbs
AVR-130-24-400130 Gallon24 Inch74 Inch400 psig479 lbs
AVR-130-24-550130 Gallon24 Inch75 Inch550 psig616 lbs
AVR-200-30-200200 Gallon30 Inch72 Inch200 psig380 lbs
AVR-200-30-250200 Gallon30 Inch72 Inch250 psig555 lbs
AVR-200-30-300200 Gallon30 Inch72 Inch300 psig586 lbs
AVR-200-30-400200 Gallon30 Inch74 Inch400 psig795 lbs
AVR-200-30-550200 Gallon30 Inch76 Inch550 psig1207 lbs
AVR-240-30-200240 Gallon30 Inch84 Inch200 psig436 lbs
AVR-240-30-250240 Gallon30 Inch84 Inch250 psig529 lbs
AVR-240-30-300240 Gallon30 Inch84 Inch300 psig679 lbs
AVR-240-30-400240 Gallon30 Inch88 Inch400 psig930 lbs
AVR-240-30-550240 Gallon30 Inch90 Inch550 psig1397 lbs
AVR-240-30-1100240 Gallon30 Inch94 Inch1100 psig2528 lbs
AVR-400-36-165400 Gallon36 Inch98 Inch165 psig615 lbs
AVR-400-36-200400 Gallon36 Inch98 Inch200 psig843 lbs
AVR-400-36-250400 Gallon36 Inch98 Inch250 psig898 lbs
AVR-400-36-300400 Gallon36 Inch98 Inch300 psig1200 lbs
AVR-400-36-400400 Gallon36 Inch98 Inch400 psig1303 lbs
AVR-400-36-550400 Gallon36 Inch102 Inch550 psig1841 lbs
AVR-500-36-165500 Gallon36 Inch119 Inch165 psig726 lbs
AVR-500-36-200500 Gallon36 Inch119 Inch200 psig936 lbs
AVR-500-36-250500 Gallon36 Inch119 Inch250 psig1054 lbs
AVR-500-36-300500 Gallon36 Inch119 Inch300 psig1367 lbs
AVR-660-42-125660 Gallon42 Inch120 Inch125 psig1126 lbs
AVR-660-42-137660 Gallon42 Inch120 Inch137 psig1039 lbs
AVR-660-42-165660 Gallon42 Inch120 Inch165 psig1143 lbs
AVR-660-42-200660 Gallon42 Inch120 Inch200 psig1490 lbs
AVR-660-42-250660 Gallon42 Inch120 Inch250 psig1588 lbs
AVR-660-42-275660 Gallon42 Inch120 Inch275 psig1806 lbs
AVR-660-42-300660 Gallon42 Inch120 Inch300 psig2059 lbs
AVR-660-42-550660 Gallon42 Inch120 Inch550 psig4090 lbs
AVR-1060-48-1251060 Gallon48 Inch144 Inch125 psig1752 lbs
AVR-1060-48-1371060 Gallon48 Inch144 Inch137 psig1760 lbs
AVR-1060-48-1501060 Gallon48 Inch144 Inch150 psig1732 lbs
AVR-1060-48-1651060 Gallon48 Inch144 Inch165 psig1967 lbs
AVR-1060-48-2001060 Gallon48 Inch144 Inch200 psig2128 lbs
AVR-1060-48-2501060 Gallon48 Inch144 Inch250 psig2495 lbs
AVR-1060-48-3001060 Gallon48 Inch144 Inch300 psig2823 lbs
AVR-1550-54-1501550 Gallon54 Inch168 Inch150 psig2340 lbs
AVR-1550-54-1651550 Gallon54 Inch168 Inch165 psig2459 lbs
AVR-1550-54-2001550 Gallon54 Inch168 Inch200 psig3225 lbs
AVR-1550-54-2501550 Gallon54 Inch168 Inch250 psig3603 lbs
AVR-2180-60-1252180 Gallon60 Inch192 Inch125 psig2954 lbs
AVR-2180-60-1372180 Gallon60 Inch192 Inch137 psig3089 lbs
AVR-2180-60-1652180 Gallon60 Inch192 Inch165 psig3597 lbs
AVR-2180-60-2002180 Gallon60 Inch192 Inch200 psig4020 lbs
AVR-2520-60-1252520 Gallon60 Inch220 Inch125 psig3158 lbs
AVR-2520-60-1372520 Gallon60 Inch220 Inch137 psig3506 lbs
AVR-2520-60-1502520 Gallon60 Inch220 Inch150 psig3474 lbs
AVR-2520-60-1652520 Gallon60 Inch220 Inch165 psig4053 lbs
AVR-3000-66-1253000 Gallon66 Inch216 Inch125 psig3796 lbs
AVR-3000-66-1373000 Gallon66 Inch216 Inch137 psig3791 lbs
AVR-3000-66-1653000 Gallon66 Inch216 Inch165 psig4838 lbs
AVR-3800-72-1253800 Gallon72 Inch232 Inch125 psig4496 lbs
AVR-3800-72-1373800 Gallon72 Inch232 Inch137 psig5102 lbs
AVR-3800-72-1503800 Gallon72 Inch232 Inch150 psig5462 lbs
AVR-5000-84-1255000 Gallon84 Inch226 Inch125 psig6033 lbs
AVR-5000-84-1375000 Gallon84 Inch226 Inch137 psig7045 lbs
AVR-5000-96-1505000 Gallon96 Inch179 Inch150 psig7315 lbs
AVR-15000-120-16515000 Gallon120 Inch334 Inch165 psig26076 lbs

Note: Dimensions and weights are nominal and subject to change. Custom sizes and high-pressure ratings (up to 3000 PSI) available on request.
