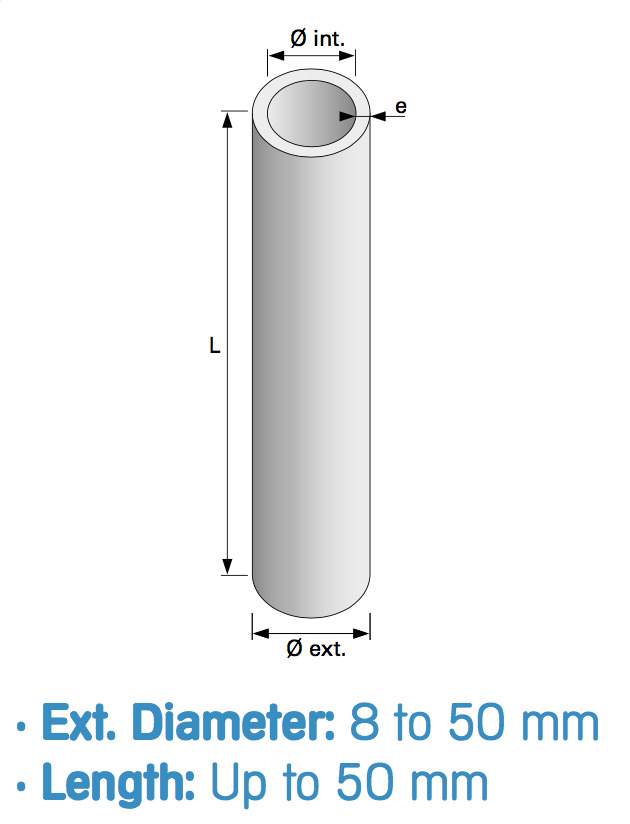

Technical Drawing (Click to View)
Features & Benefits
Uniaxial pressed tubes are mainly used as flame arrestors in welding devices, but also serve well for filtration in compact spaces. Contact us for custom lengths or diameters.
- Material: 316 L Stainless Steel construction per default. (304 L, Inconel 600, Monel 400, or Hastelloy on request).
- Durability: High mechanical resistance and good durability against aggressive fluids.
- Temperature: Usable over a wide range of temperatures.
- Maintenance: Regenerable through backflush, chemical, thermal, or ultrasonic treatment.
- Retention: 8 PORAL grades available (03 to 40).
Designation / Ordering Guide
| Item Model | Ext. Ø D (mm) | Length L (mm) | Filtration Surface S (cm²) |
|---|---|---|---|
| IP 8.20 | 8 | 20 | 5.0 |
| IP 20.30 | 20 | 30 | 19.0 |
| IP 30.50 | 30 | 50 | 47.0 |
| IP 50.40 | 50 | 40 | 63.0 |
Note on Filtration: In liquids, retention at 98% of solid particles ranges from 3.2 μm (Grade 03) to 90 μm (Grade 40). In gases, retention ranges from 0.2 μm to 8 μm.
