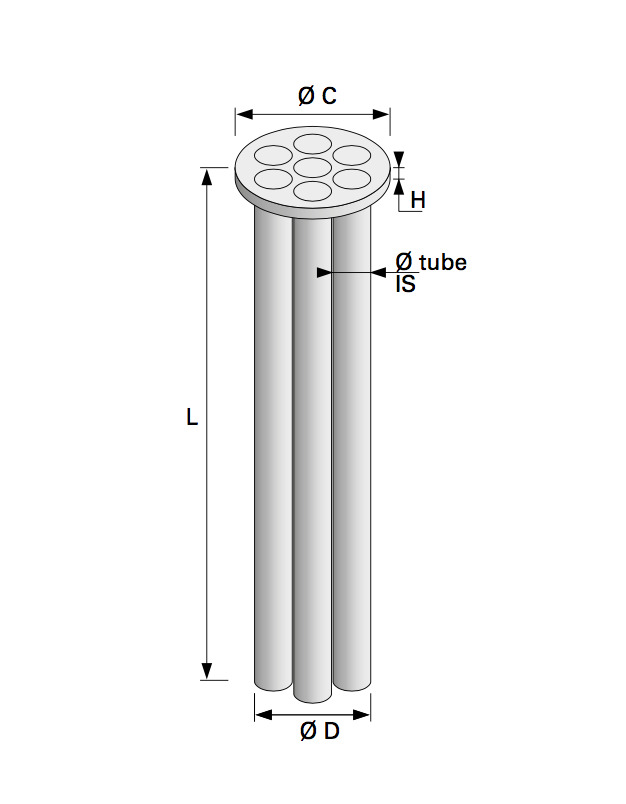

Technical Drawing (Click to View)
Features & Benefits
CFI Multi Cartridges are mainly used for filtering gases at high flow rates with a low pressure drop or in reduced spaces. They feature a multi-tube design to maximize filtration surface area. Contact us for custom flange or length requirements.
- Material: 316 L Stainless Steel construction per default. (304 L, Inconel 600, Monel 400, or Hastelloy on request).
- Durability: High mechanical resistance and good durability against aggressive fluids.
- Flange: Standard Flange Thickness = 10 mm.
- Maintenance: Regenerable through backflush, chemical, thermal, or ultrasonic treatment.
- Retention: 8 PORAL grades available (03 to 40).
Designation / Ordering Guide
| Item Model | Ø D (mm) | Length L (mm) | Ø Tube IS | Nbr Tube IS | Ø C (mm) | Surface S (cm²) |
|---|---|---|---|---|---|---|
| CFI 8.60 | 80 | 600 | 35 | 3 | 100 | 1800 |
| CFI 8.90 | 80 | 900 | 35 | 3 | 100 | 2700 |
| CFI 10.60 | 100 | 600 | 30 | 7 | 120 | 3500 |
| CFI 10.90 | 100 | 900 | 30 | 7 | 120 | 5300 |
Note on Filtration: In liquids, retention at 98% of solid particles ranges from 3.2 μm (Grade 03) to 90 μm (Grade 40). In gases, retention ranges from 0.2 μm to 8 μm.
