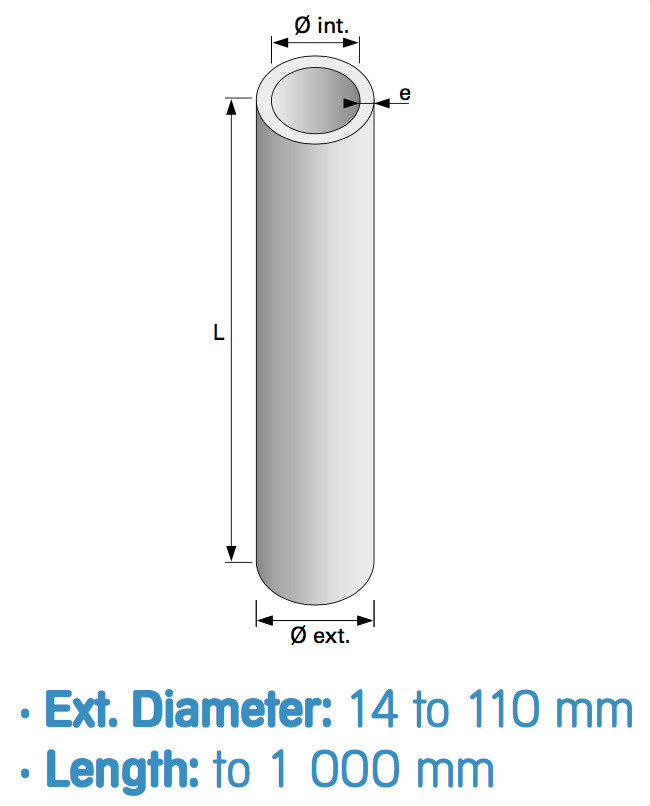

Technical Drawing (Click to View)
Features & Benefits
Isostatic tubes serve as the basic shape for standard candles (BI) or cartridges (CRI, CFI, and DOE). They offer uniform porosity and high mechanical strength due to the isostatic pressing process. Contact us for custom lengths.
- Material: 316 L Stainless Steel construction per default. (304 L, Inconel 600, Monel 400, or Hastelloy on request).
- Durability: High mechanical resistance and good durability against aggressive fluids.
- Temperature: Usable over a wide range of temperatures.
- Maintenance: Regenerable through backflush, chemical, thermal, or ultrasonic treatment.
- Retention: 8 PORAL grades available (03 to 40).
Designation / Ordering Guide
| Item Model | Ext. Ø (mm) | Length (mm) | Filtration Surface S (cm²) |
|---|---|---|---|
| IS 14.250 | 14 | 250 | 110 |
| IS 17.600 | 17 | 600 | 320 |
| IS 20.600 | 20 | 600 | 377 |
| IS 23.600 | 23 | 600 | 434 |
| IS 30.600 | 30 | 600 | 565 |
| IS 35.600 | 35 | 600 | 660 |
| IS 40.600 | 40 | 600 | 754 |
| IS 50.600 | 50 | 600 | 942 |
| IS 60.600 | 60 | 600 | 1131 |
| IS 80.600 | 80 | 600 | 1508 |
| IS 100.600 | 100 | 600 | 1885 |
| IS 20.1000 | 20 | 1000 | 628 |
| IS 23.1000 | 23 | 1000 | 723 |
| IS 30.1000 | 30 | 1000 | 942 |
| IS 40.1000 | 40 | 1000 | 1257 |
| IS 50.1000 | 50 | 1000 | 1571 |
| IS 60.750 | 60 | 750 | 1414 |
| IS 60.1000 | 60 | 1000 | 1885 |
| IS 80.1000 | 80 | 1000 | 2513 |
| IS 100.1000 | 100 | 1000 | 3142 |
Note on Filtration: In liquids, retention at 98% of solid particles ranges from 3.2 μm (Grade 03) to 90 μm (Grade 40). In gases, retention ranges from 0.2 μm to 8 μm.
Request a Quote for IS Tubes
