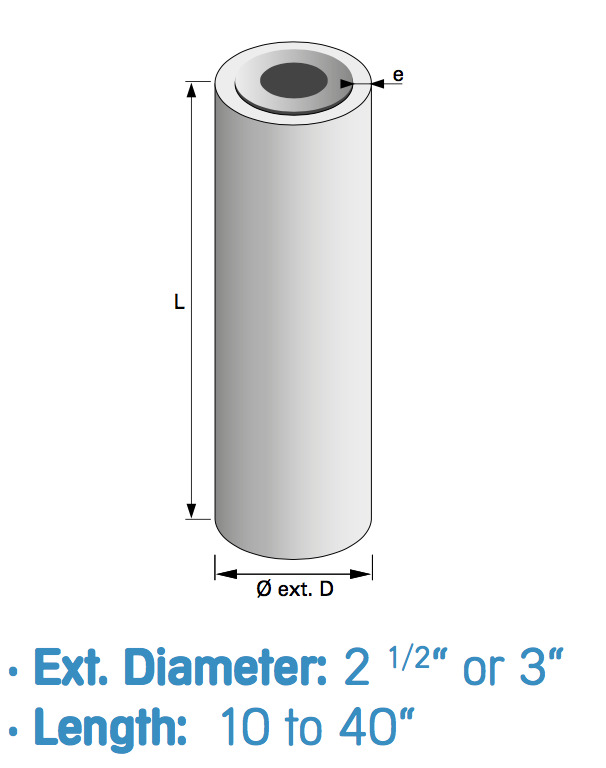

Technical Drawing (Click to View)
Features & Benefits
Designed for standard DOE housings, these cartridges are mainly used for steam filtration. They offer high mechanical resistance and can be customized with different sealing options depending on the operating environment. Contact us for custom sizes.
- Material: 316 L Stainless Steel construction per default. (304 L, Inconel 600, Monel 400, or Hastelloy on request).
- Durability: High mechanical resistance and good durability against aggressive fluids.
- Temperature: Usable over a wide range of temperatures.
- Maintenance: Regenerable through backflush, chemical, thermal, or ultrasonic treatment.
- Retention: 8 PORAL grades available (03 to 40).
Designation / Ordering Guide
| Item Model | Ext. Ø D (Inches) | Length L (Inches) | Wall Thickness (mm) | Filtration Surface S (cm²) |
|---|---|---|---|---|
| DOE 2 1/2.10 | 2 1/2" | 10" | 2.5 | 507 |
| DOE 2 1/2.20 | 2 1/2" | 20" | 2.5 | 1013 |
| DOE 2 1/2.30 | 2 1/2" | 30" | 2.5 | 1520 |
| DOE 3.20 | 3" | 20" | 2.5 | 1216 |
| DOE 3.40 | 3" | 40" | 2.5 | 2432 |
Note on Filtration: In liquids, retention at 98% of solid particles ranges from 3.2 μm (Grade 03) to 90 μm (Grade 40). In gases, retention ranges from 0.2 μm to 8 μm.
