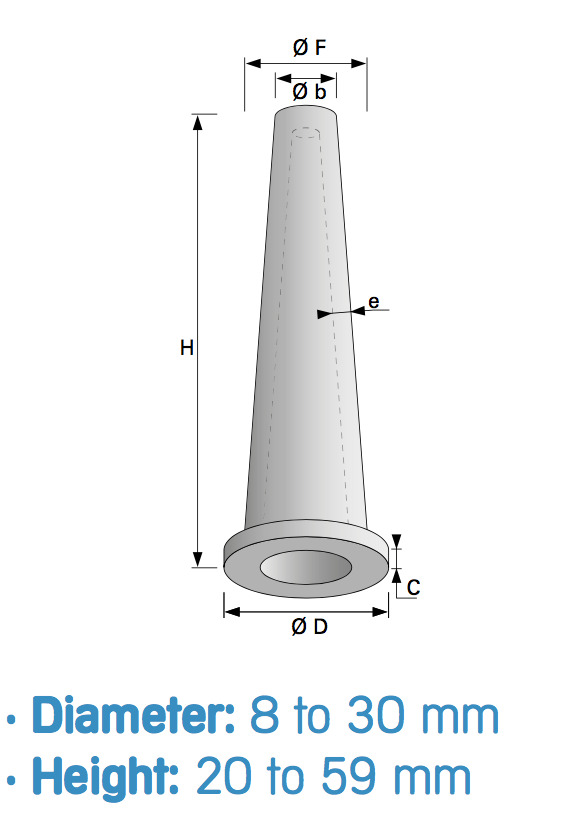

Technical Drawing (Click to View)
Features & Benefits
Mainly used for in-line filtration offering larger filtration surface in small diameters. These cones are designed to be clamped or inserted in PPL assembly. Contact us for customized designs.
- Material: 316 L Stainless Steel construction per default. (304 L, Inconel 600, Monel 400, or Hastelloy on request).
- Durability: Good durability against most aggressive fluids.
- Temperature: Usable over a wide range of temperatures.
- Maintenance: Regenerable through backflush, chemical, thermal, or ultrasonic treatment.
- Retention: 8 PORAL grades available (03 to 40).
Designation / Ordering Guide
| Item Model | Ø F (mm) | Height H (mm) | Ø D (mm) | Wall Thickness (mm) | Flange Thickness C (mm) | Ø b (mm) | Surface S (cm²) |
|---|---|---|---|---|---|---|---|
| ICN 8 | 8 | 20 | 13 | 1.5 | 2.5 | 1 | 1 |
| ICN 12 | 12 | 32 | 17 | 2 | 2.5 | 2 | 5 |
| ICN 15 | 15 | 41 | 21 | 2 | 3 | 2 | 10 |
| ICN 21 | 21 | 59 | 27 | 2.5 | 3 | 2.8 | 20 |
Note on Filtration: In liquids, retention at 98% of solid particles ranges from 3.2 μm (Grade 03) to 90 μm (Grade 40). In gases, retention ranges from 0.2 μm to 8 μm.
