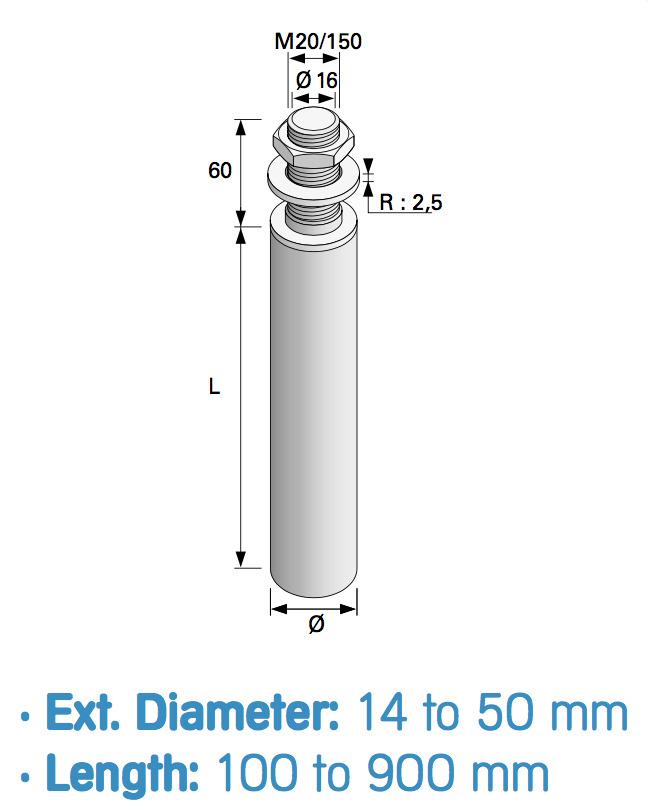

Technical Drawing (Click to View)
Features & Benefits
Designed to be screwed under a filter plate in a filtration vessel or at the end of piping. The standard connection is a threaded M20x150 with a Ø16 opening on one end and a closed ending on the other. Contact us for other fittings (NPT, BSP).
- Material: 316 L Stainless Steel construction per default. (304 L, Inconel 600, Monel 400, or Hastelloy on request).
- Durability: High mechanical resistance and good durability against aggressive fluids.
- Temperature: Usable over a wide range of temperatures.
- Maintenance: Regenerable through backflush, chemical, thermal, or ultrasonic treatment.
- Retention: 8 PORAL grades available (03 to 40).
Designation / Ordering Guide
| Item Model | Ext. Ø (mm) | Length L (mm) | Filtration Surface S (cm²) |
|---|---|---|---|
| BI 2.10 | 20 | 100 | 70 |
| BI 4.12 | 40 | 125 | 150 |
| BI 4.25 | 40 | 250 | 300 |
| BI 5.30 | 50 | 300 | 450 |
| BI 5.60 | 50 | 600 | 900 |
Note on Filtration: In liquids, retention at 98% of solid particles ranges from 3.2 μm (Grade 03) to 90 μm (Grade 40). In gases, retention ranges from 0.2 μm to 8 μm.
