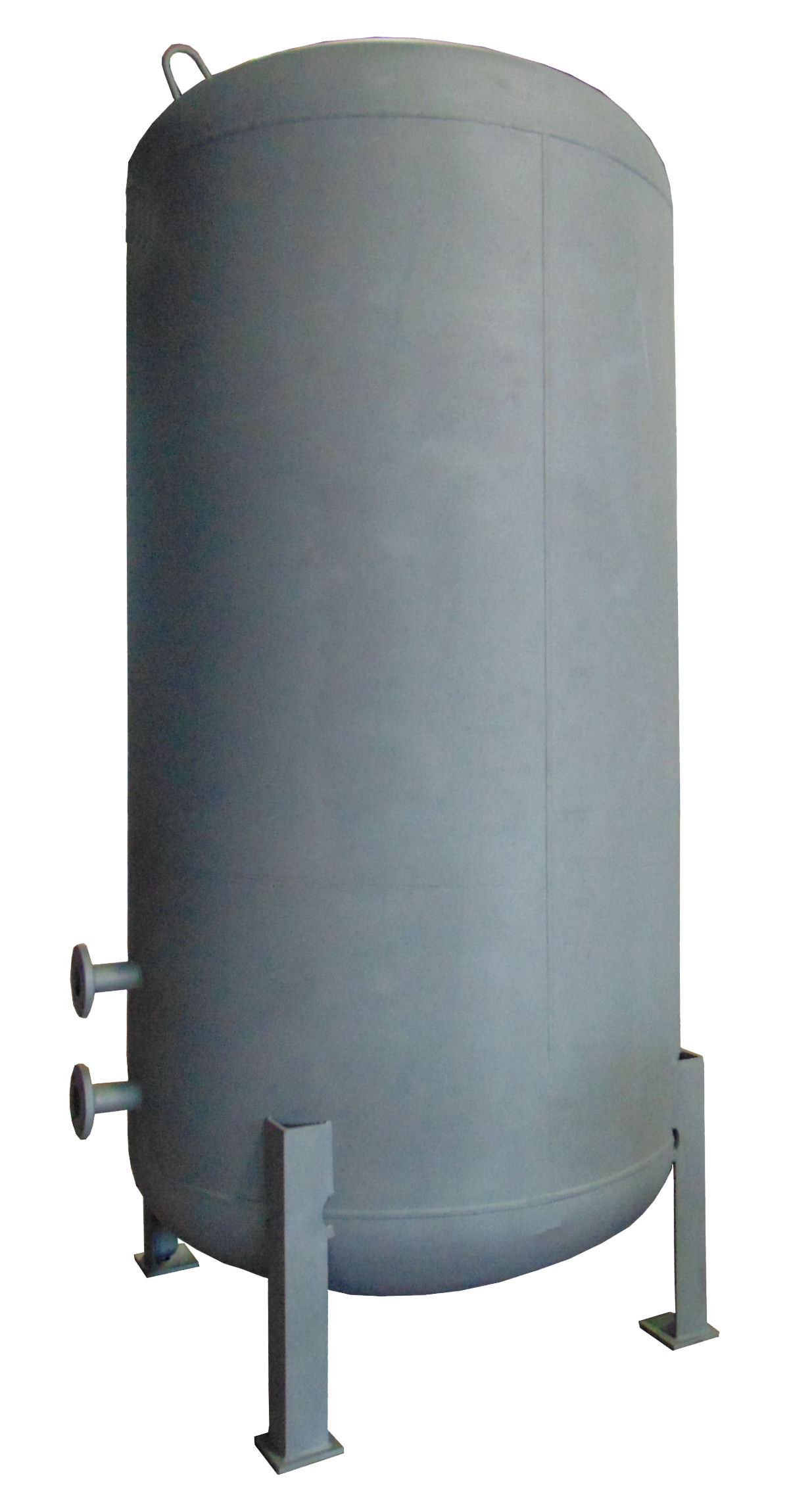

Product Photo (Click to View)
Technical Drawing (Click to View)
h = 6"
Standard Vertical Glass Lined Hot Water Tanks
Our Vertical Glass Lined Hot Water Storage Tanks are built in accordance with the requirements of the ASME Boiler and Pressure Vessel Code. The glass lining provides a superior, non-porous surface that is ideal for potable water applications, preventing corrosion and ensuring water purity.
- Code Compliance: ASME Section VIII Div 1.
- Lining: Fused Glass Lining for superior corrosion resistance and hygiene.
- Orientation: Vertical (Space-saving footprint).
- Customization: Custom sizes and pressures available upon request.
Dimensional Specifications
| Part Number | Capacity | Size (OD x OA) | Weight |
|---|---|---|---|
| HWVL-180-30-160G | 180 Gallons | 30" x 63" | 404# |
| HWVL-235-30-160G | 235 Gallons | 30" x 84" | 523# |
| HWVL-305-36-160G | 305 Gallons | 36" x 77" | 613# |
| HWVL-335-36-160G | 335 Gallons | 36" x 84" | 677# |
| HWVL-400-36-160G | 400 Gallons | 36" x 99" | 768# |
| HWVL-460-36-160G | 460 Gallons | 36" x 113" | 785# |
| HWVL-462-42-160G | 462 Gallons | 42" x 84" | 868# |
| HWVL-534-42-160G | 534 Gallons | 42" x 96" | 1030# |
| HWVL-585-48-160G | 585 Gallons | 48" x 84" | 1143# |
| HWVL-660-42-160G | 660 Gallons | 42" x 120" | 1293# |
| HWVL-712-48-160G | 712 Gallons | 48" x 100" | 1184# |
| HWVL-800-48-160G | 800 Gallons | 48" x 111" | 1420# |
| HWVL-900-48-160G | 900 Gallons | 48" x 122" | 1618# |
| HWVL-1040-54-160G | 1040 Gallons | 54" x 115" | 1764# |
| HWVL-1225-56-125G | 1225 Gallons | 56" x 127" | 1806# |
| HWVL-1450-60-125G | 1450 Gallons | 60" x 130" | 2130# |
| HWVL-1500-64-125G | 1500 Gallons | 64" x 121" | 2209# |
| HWVL-1650-64-125G | 1650 Gallons | 64" x 130" | 2469# |
| HWVL-1950-72-125G | 1950 Gallons | 72" x 123" | 2659# |
| HWVL-2150-72-125G | 2150 Gallons | 72" x 135" | 2862# |
Note: Dimensions are nominal and subject to change. Custom sizes, linings, and pressure ratings available on request.
