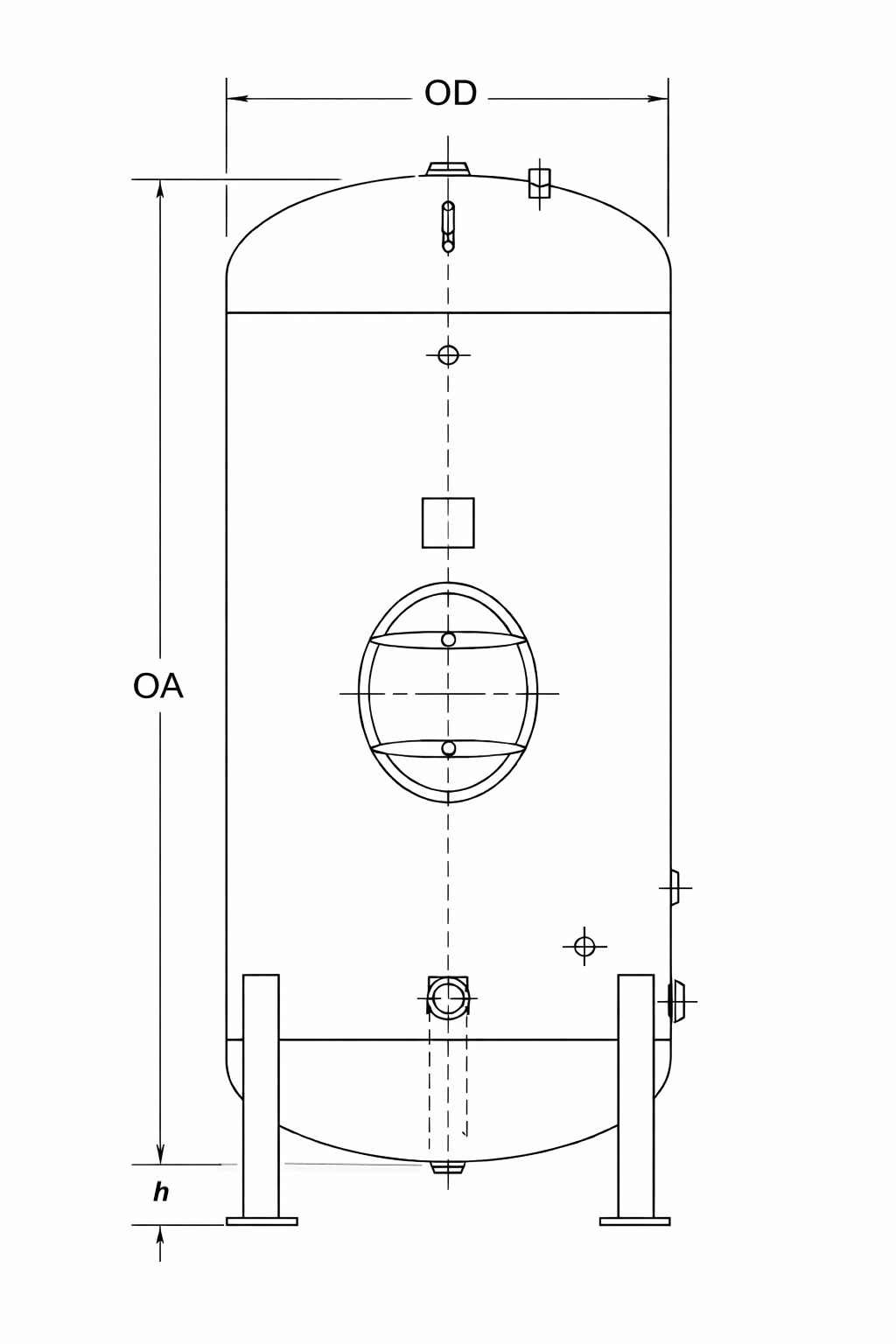

Technical Drawing (Click to View)
h = 6"
Standard Vertical Epoxy Lined Hot Water Tanks
Our Vertical Epoxy Lined Hot Water Storage Tanks are built in accordance with the requirements of the ASME Boiler and Pressure Vessel Code. The epoxy lining provides a durable, cost-effective solution for hot water storage, offering excellent resistance to corrosion.
- Code Compliance: ASME Section VIII Div 1.
- Lining: High-quality Epoxy Lining for corrosion protection.
- Orientation: Vertical (Space-saving footprint).
- Customization: Custom sizes and pressures available upon request.
Dimensional Specifications
| Part Number | Capacity | Size (OD x OA) | Weight |
|---|---|---|---|
| HWVL-140-30-160E | 140 Gallons | 30" x 51" | 326# |
| HWVL-180-30-160E | 180 Gallons | 30" x 63" | 375# |
| HWVL-235-30-160E | 235 Gallons | 30" x 84" | 473# |
| HWVL-305-36-160E | 305 Gallons | 36" x 77" | 641# |
| HWVL-335-36-160E | 335 Gallons | 36" x 84" | 577# |
| HWVL-400-36-160E | 400 Gallons | 36" x 99" | 669# |
| HWVL-462-42-160E | 462 Gallons | 42" x 84" | 794# |
| HWVL-534-42-160E | 534 Gallons | 42" x 96" | 877# |
| HWVL-660-42-160E | 660 Gallons | 42" x 120" | 1065# |
| HWVL-585-48-160E | 585 Gallons | 48" x 83" | 1014# |
| HWVL-712-48-160E | 712 Gallons | 48" x 100" | 1162# |
| HWVL-800-48-160E | 800 Gallons | 48" x 111" | 1458# |
| HWVL-900-48-160E | 900 Gallons | 48" x 122" | 1369# |
| HWVL-1040-54-160E | 1040 Gallons | 54" x 115" | 1764# |
| HWVL-1225-56-125E | 1225 Gallons | 56" x 127" | 1806# |
| HWVL-1450-60-125E | 1450 Gallons | 60" x 130" | 2075# |
| HWVL-1650-64-125E | 1650 Gallons | 64" x 130" | 2354# |
| HWVL-1950-72-125E | 1950 Gallons | 72" x 123" | 2659# |
Note: Dimensions are nominal and subject to change. Custom sizes, linings, and pressure ratings available on request.
