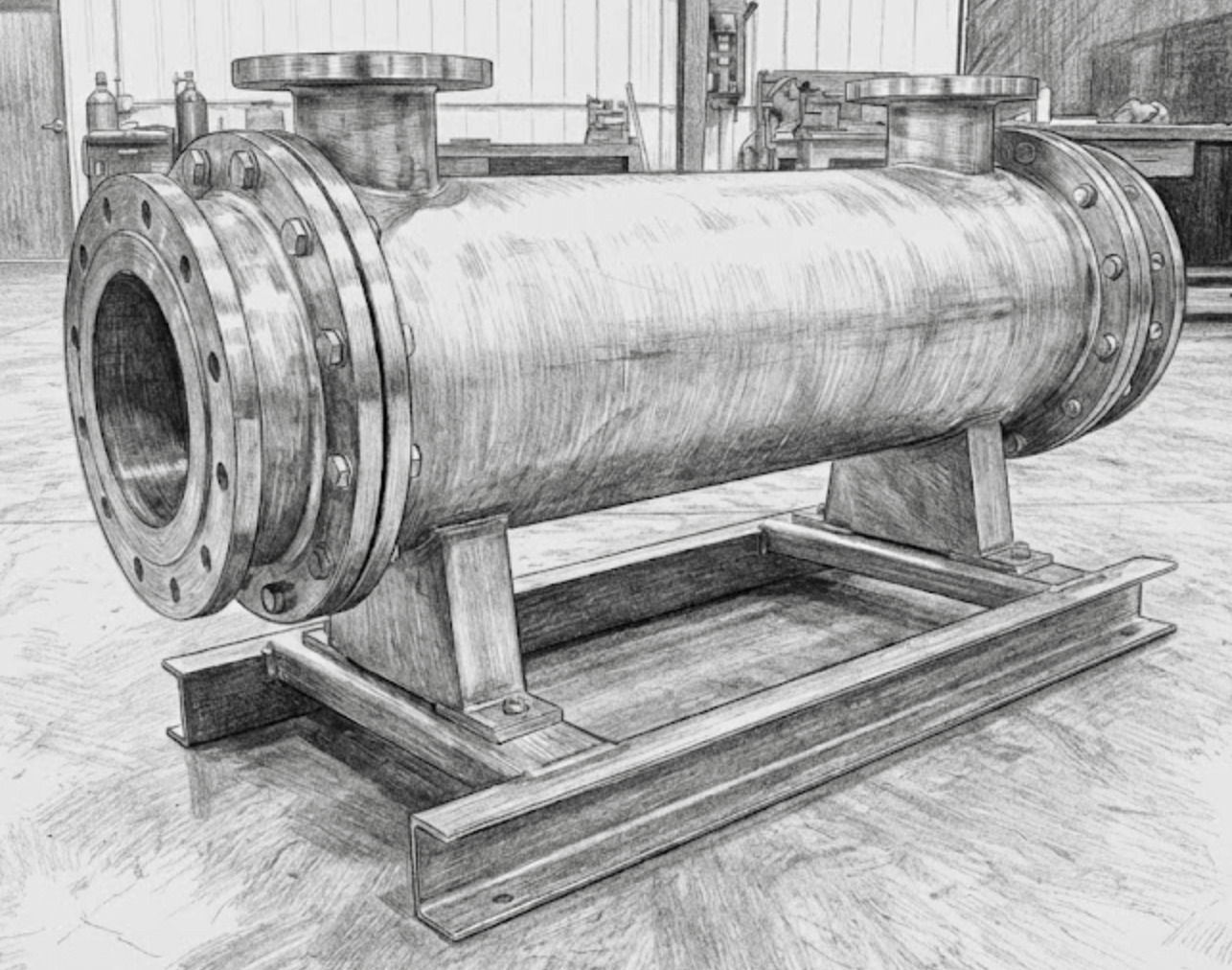

Product Photo (Click to View)

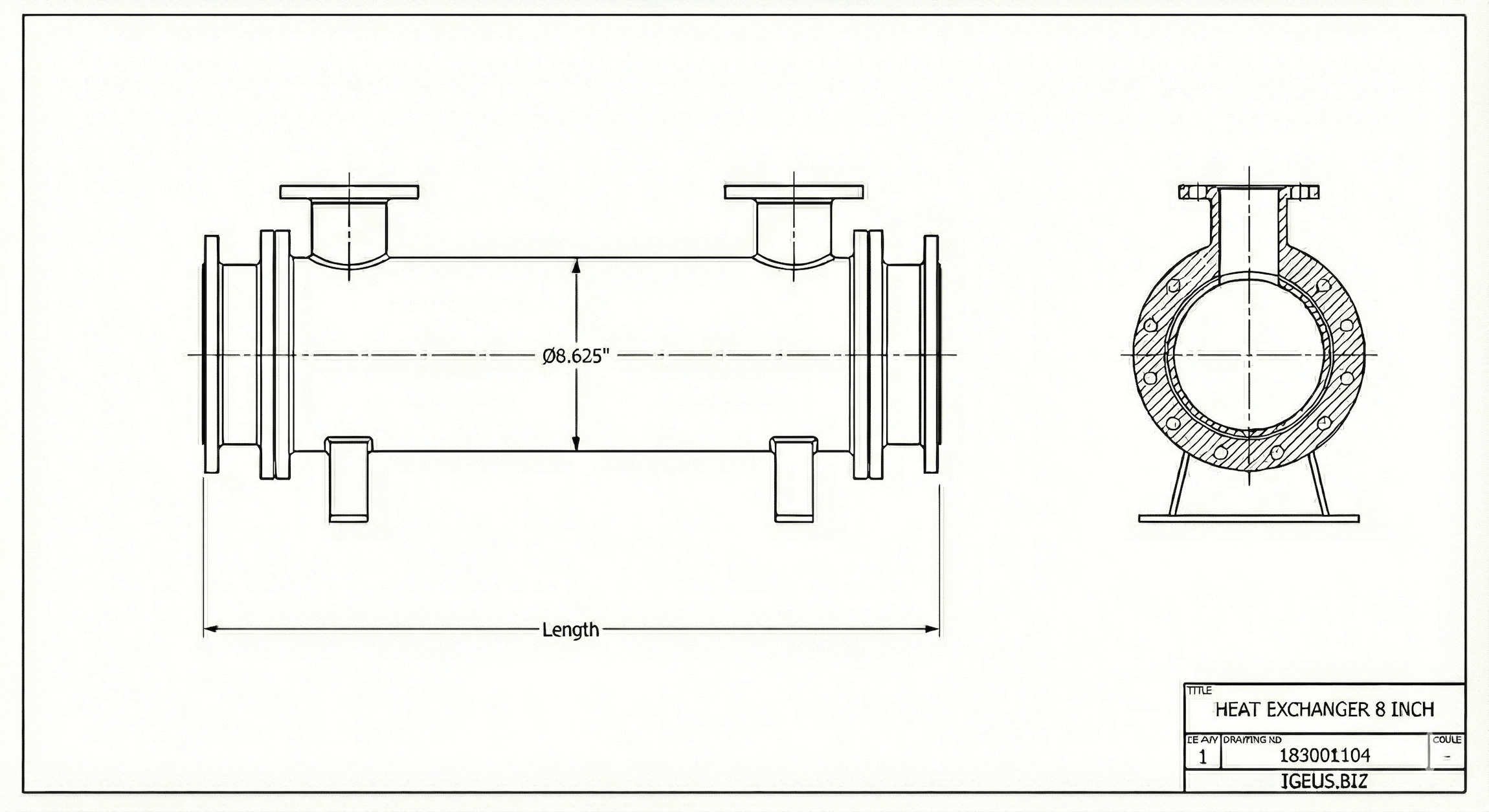

Technical Drawing (Click to View)
Standard 8" Diameter Heat Exchangers
Our 8" diameter shell and tube heat exchangers are designed for substantial heat transfer loads. These robust units are suitable for demanding industrial environments, offering high efficiency and durability.
- Diameter: 8 Inches.
- Tubing: High-efficiency transfer tubes.
- Construction: Carbon Steel, Stainless Steel, or Titanium options.
- Applications: Large-scale cooling, heating, and industrial processes.
Dimensional Specifications
| Part Number (Dia x Length) | Surface Area (Sq. Ft.) - 2 Pass | Surface Area (Sq. Ft.) - 4 Pass | Approx. Shipping Weight (lbs) |
|---|---|---|---|
| IGHX-8x18 | 13.7 | 12.5 | 113 |
| IGHX-8x24 | 18.4 | 16.8 | 127 |
| IGHX-8x30 | 23.1 | 21.1 | 141 |
| IGHX-8x36 | 27.9 | 25.4 | 155 |
| IGHX-8x42 | 32.6 | 29.7 | 169 |
| IGHX-8x48 | 37.3 | 34.1 | 197 |
| IGHX-8x54 | 42.0 | 38.4 | 190 |
| IGHX-8x60 | 46.7 | 42.7 | 225 |
| IGHX-8x66 | 51.4 | 47.0 | 210 |
| IGHX-8x72 | 56.1 | 51.3 | 253 |
| IGHX-8x78 | 62.4 | 57.1 | 231 |
| IGHX-8x84 | 65.5 | 60.0 | 281 |
| IGHX-8x90 | 70.3 | 64.3 | 251 |
| IGHX-8x96 | 75.0 | 68.6 | 313 |
| IGHX-8x102 | 79.7 | 72.9 | 272 |
| IGHX-8x108 | 84.4 | 77.3 | 334 |
| IGHX-8x114 | 89.1 | 81.6 | 354 |
| IGHX-8x120 | 93.8 | 85.9 | 375 |
| IGHX-8x126 | 98.5 | 90.2 | 395 |
| IGHX-8x132 | 103.2 | 94.5 | 416 |
| IGHX-8x138 | 107.9 | 98.8 | 437 |
| IGHX-8x144 | 112.6 | 103.1 | 458 |
Note: Dimensions are nominal and subject to change. Custom materials and configurations available on request.
