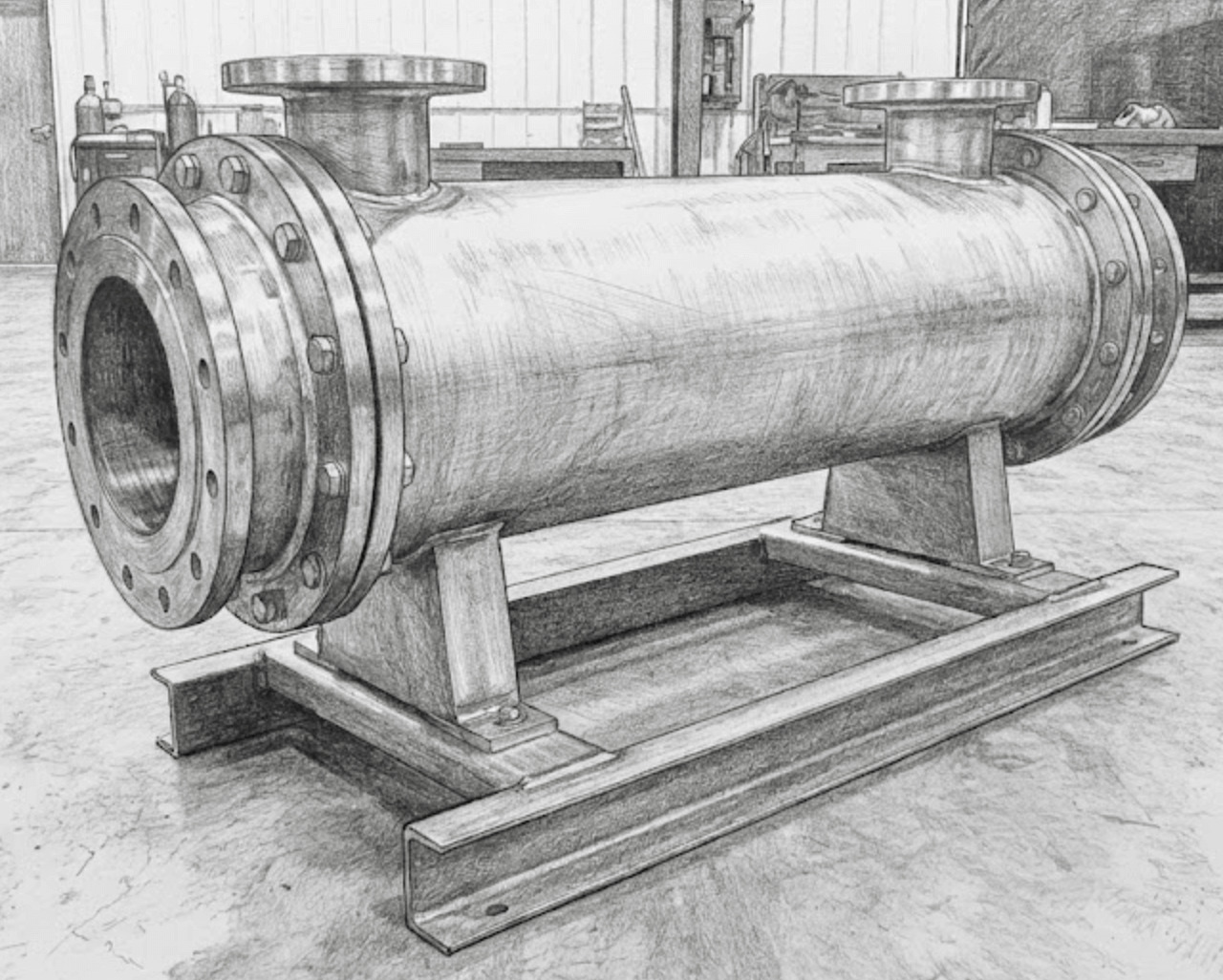

Product Photo (Click to View)

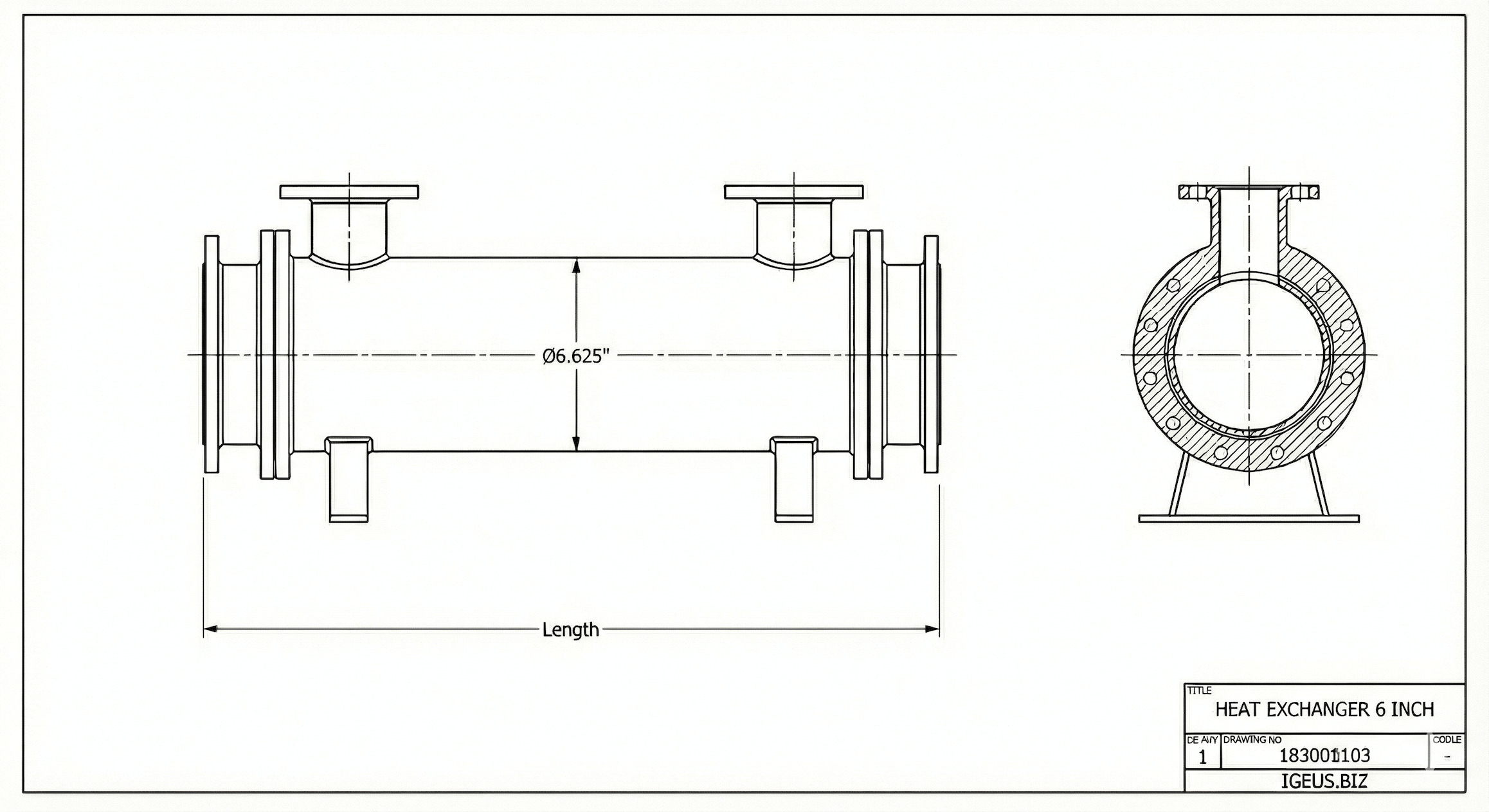

Technical Drawing (Click to View)
Standard 6" Diameter Heat Exchangers
Our 6" diameter shell and tube heat exchangers are built for higher capacity industrial applications. They provide excellent thermal performance and are available in various material configurations to suit your specific process fluids.
- Diameter: 6 Inches.
- Tubing: High-efficiency transfer tubes.
- Construction: Carbon Steel, Stainless Steel, or Titanium options.
- Applications: Industrial cooling, heating, and heat recovery.
Dimensional Specifications
| Part Number (Dia x Length) | Surface Area (Sq. Ft.) - 2 Pass | Surface Area (Sq. Ft.) - 4 Pass | Approx. Shipping Weight (lbs) |
|---|---|---|---|
| IGHX-6x12 | 3.4 | 2.6 | 67 |
| IGHX-6x18 | 5.3 | 4.2 | 75 |
| IGHX-6x24 | 7.3 | 5.7 | 83 |
| IGHX-6x30 | 9.3 | 7.3 | 91 |
| IGHX-6x36 | 11.2 | 8.9 | 100 |
| IGHX-6x42 | 13.2 | 10.5 | 108 |
| IGHX-6x48 | 15.2 | 12.0 | 116 |
| IGHX-6x54 | 17.1 | 13.6 | 124 |
| IGHX-6x60 | 19.1 | 15.2 | 132 |
| IGHX-6x66 | 21.0 | 16.7 | 145 |
| IGHX-6x72 | 23.0 | 18.3 | 148 |
| IGHX-6x78 | 25.6 | 20.4 | 161 |
| IGHX-6x84 | 26.9 | 21.4 | 164 |
| IGHX-6x90 | 28.9 | 23.0 | 177 |
| IGHX-6x96 | 30.9 | 24.6 | 180 |
| IGHX-6x102 | 32.8 | 26.2 | 193 |
| IGHX-6x108 | 34.8 | 27.7 | 205 |
| IGHX-6x114 | 36.7 | 29.3 | 218 |
| IGHX-6x120 | 38.7 | 30.9 | 230 |
| IGHX-6x126 | 40.7 | 32.4 | 243 |
| IGHX-6x132 | 42.6 | 34.0 | 255 |
| IGHX-6x138 | 44.6 | 35.6 | 268 |
Note: Dimensions are nominal and subject to change. Custom materials and configurations available on request.
