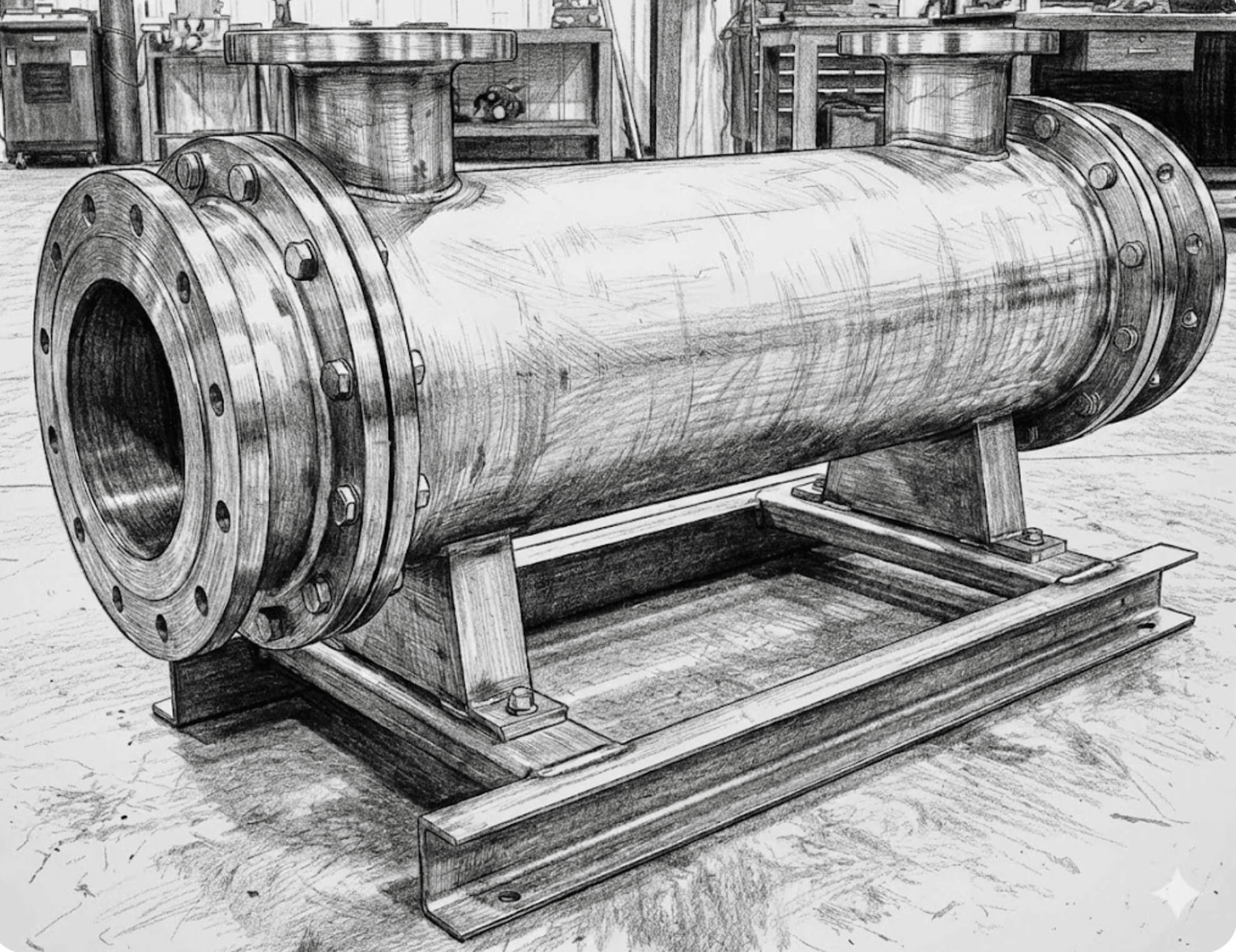

Product Photo (Click to View)

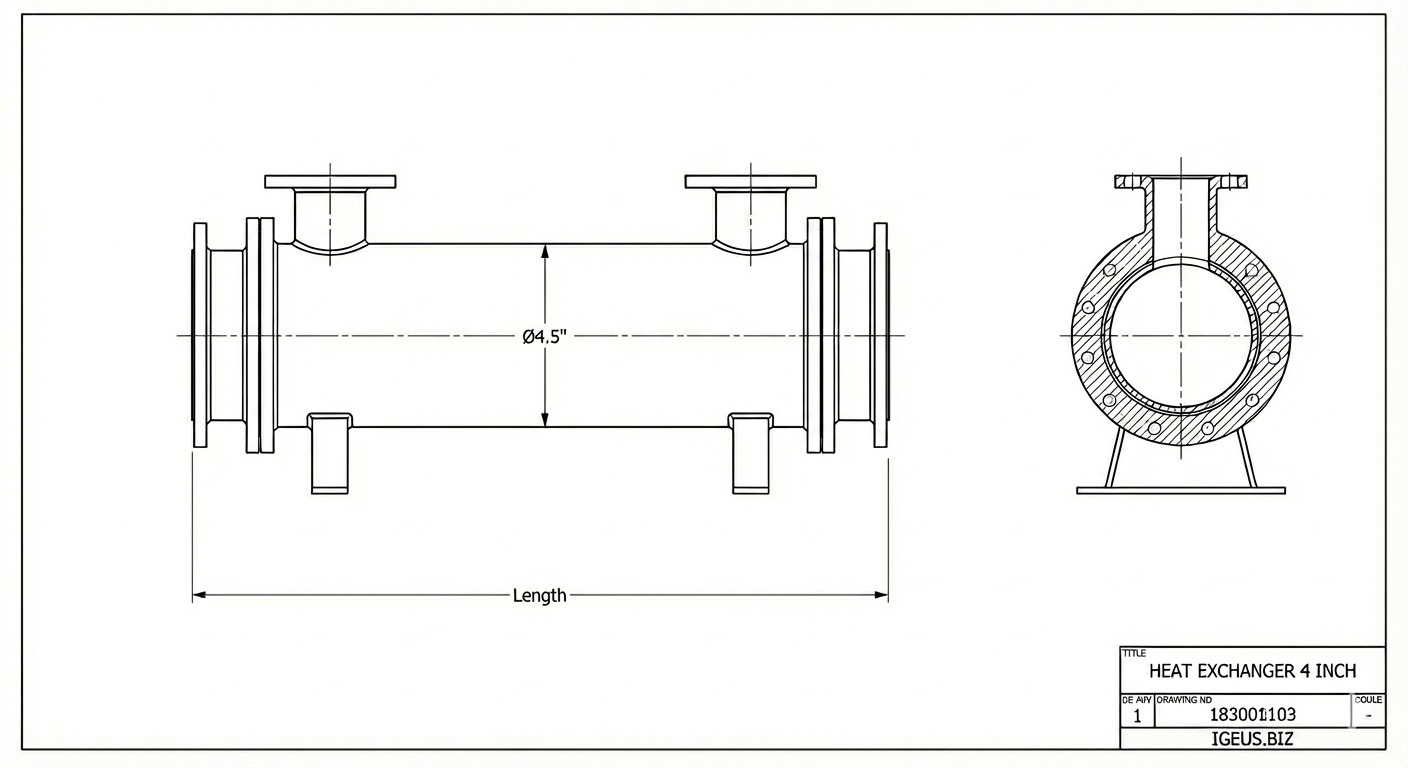

Technical Drawing (Click to View)
Standard 4" Diameter Heat Exchangers
Our 4" diameter shell and tube heat exchangers are designed for efficient heat transfer in compact spaces. They are ideal for various industrial and marine applications, offering reliable performance with durable construction.
- Diameter: 4 Inches.
- Tubing: High-efficiency transfer tubes.
- Construction: Carbon Steel, Stainless Steel, or Titanium options.
- Applications: Oil cooling, water heating, process fluids.
Dimensional Specifications
| Part Number (Dia x Length) | Surface Area (Sq. Ft.) - 2 Pass | Surface Area (Sq. Ft.) - 4 Pass | Approx. Shipping Weight (lbs) |
|---|---|---|---|
| IGHX-4x12 | 1.6 | 1.6 | 38 |
| IGHX-4x18 | 2.4 | 2.4 | 42 |
| IGHX-4x24 | 3.2 | 3.2 | 45 |
| IGHX-4x30 | 3.9 | 3.9 | 49 |
| IGHX-4x36 | 4.7 | 4.7 | 53 |
| IGHX-4x42 | 5.5 | 5.5 | 57 |
| IGHX-4x48 | 6.3 | 6.3 | 61 |
| IGHX-4x54 | 7.1 | 7.1 | 67 |
| IGHX-4x60 | 7.9 | 7.9 | 69 |
| IGHX-4x66 | 8.7 | 8.7 | 75 |
| IGHX-4x72 | 9.4 | 9.4 | 76 |
| IGHX-4x78 | 10.5 | 10.5 | 82 |
| IGHX-4x84 | 11.0 | 11.0 | 84 |
| IGHX-4x90 | 11.8 | 11.8 | 90 |
| IGHX-4x96 | 12.6 | 12.6 | 92 |
| IGHX-4x102 | 13.4 | 13.4 | 98 |
| IGHX-4x108 | 14.2 | 14.2 | 104 |
| IGHX-4x114 | 14.9 | 14.9 | 110 |
| IGHX-4x120 | 15.7 | 15.7 | 116 |
| IGHX-4x126 | 16.5 | 16.5 | 122 |
| IGHX-4x132 | 17.3 | 17.3 | 128 |
| IGHX-4x138 | 18.1 | 18.1 | 134 |
Note: Dimensions are nominal and subject to change. Custom materials and configurations available on request.
