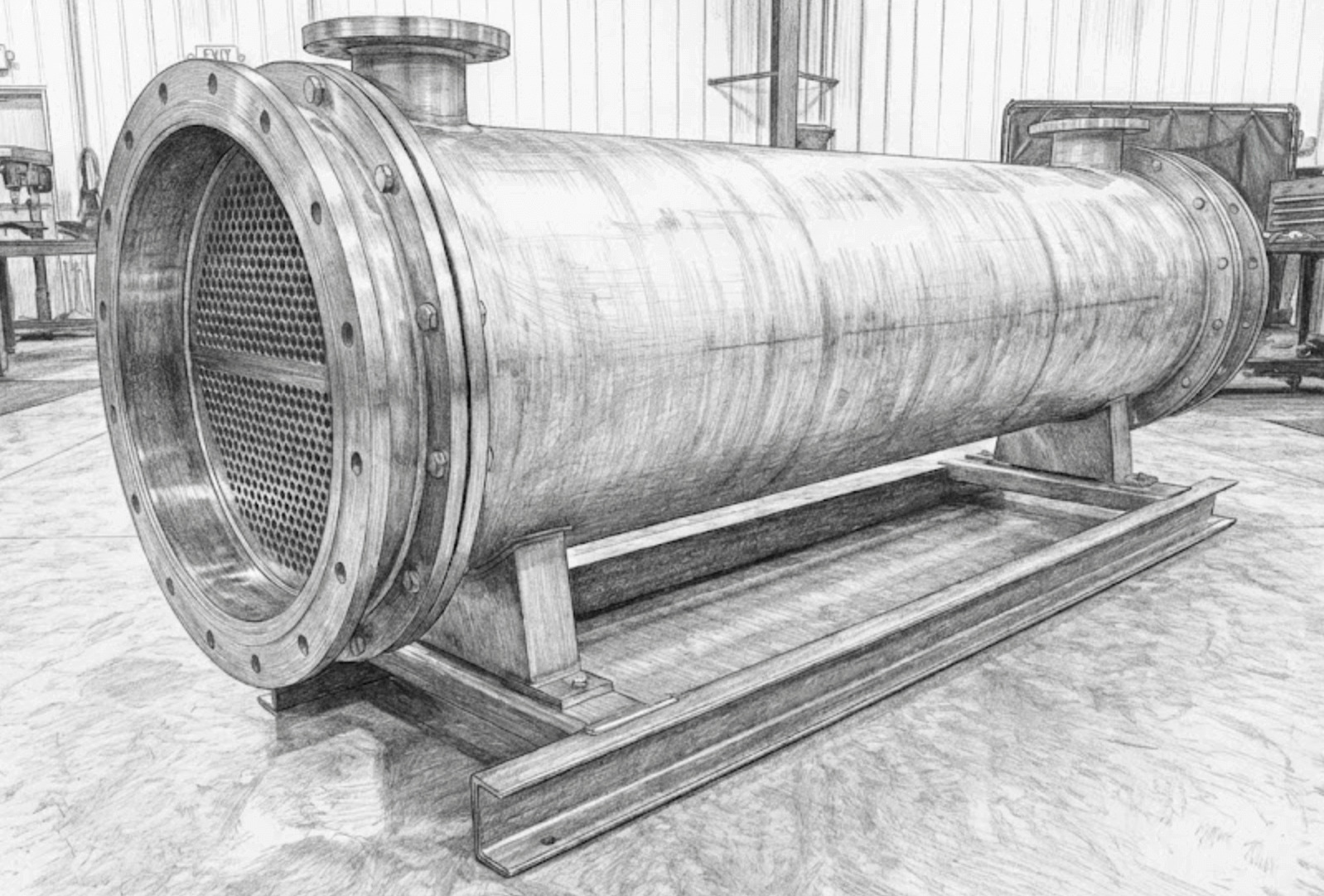

Product Photo (Click to View)

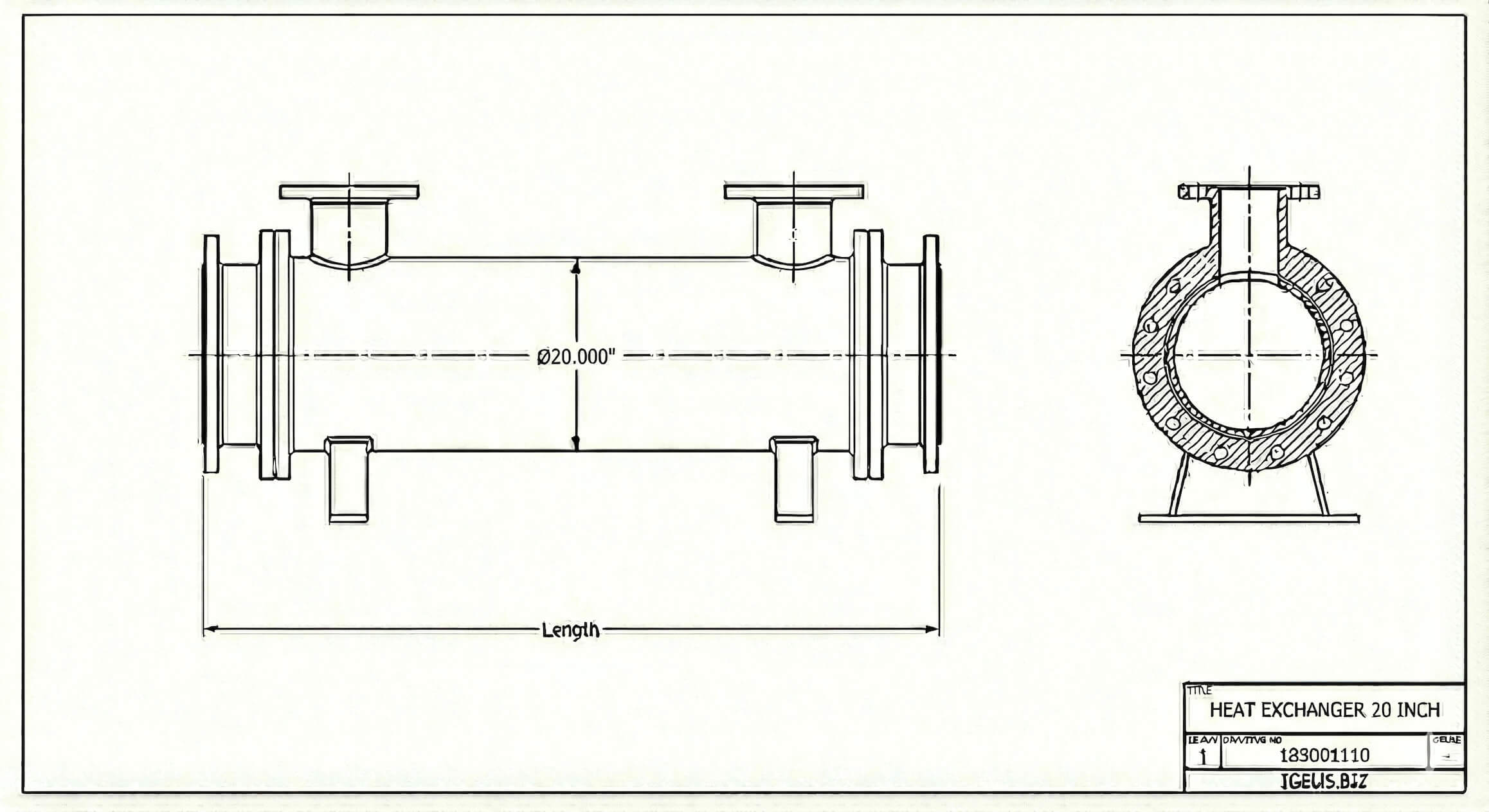

Technical Drawing (Click to View)
Standard 20" Diameter Heat Exchangers
Our 20" diameter shell and tube heat exchangers represent our largest standard offering, providing massive heat transfer capacity for major industrial, power generation, and marine applications.
- Diameter: 20 Inches.
- Tubing: High-efficiency transfer tubes.
- Construction: Carbon Steel, Stainless Steel, or Titanium options.
- Applications: Mega-scale cooling, central plant operations, heavy process industries.
Dimensional Specifications
| Part Number (Dia x Length) | Surface Area (Sq. Ft.) - 2 Pass | Surface Area (Sq. Ft.) - 4 Pass | Approx. Shipping Weight (lbs) |
|---|---|---|---|
| IGHX-20x36 | 178.0 | 172.4 | 1075 |
| IGHX-20x42 | 210.4 | 203.8 | 1150 |
| IGHX-20x48 | 242.8 | 235.2 | 1225 |
| IGHX-20x54 | 275.2 | 266.6 | 1300 |
| IGHX-20x60 | 307.6 | 298.0 | 1375 |
| IGHX-20x66 | 340.0 | 329.4 | 1450 |
| IGHX-20x72 | 372.3 | 360.8 | 1525 |
| IGHX-20x78 | 415.5 | 402.7 | 1600 |
| IGHX-20x84 | 437.1 | 423.6 | 1675 |
| IGHX-20x90 | 469.5 | 455.0 | 1750 |
| IGHX-20x96 | 501.9 | 486.4 | 1825 |
| IGHX-20x102 | 534.3 | 517.9 | 1900 |
| IGHX-20x108 | 566.7 | 549.3 | 1975 |
| IGHX-20x114 | 599.1 | 580.7 | 2050 |
| IGHX-20x120 | 631.5 | 612.1 | 2125 |
| IGHX-20x126 | 663.8 | 643.5 | 2200 |
| IGHX-20x132 | 696.2 | 674.9 | 2275 |
| IGHX-20x138 | 728.6 | 706.3 | 2350 |
| IGHX-20x144 | 761.0 | 737.7 | 2425 |
| IGHX-20x150 | 793.4 | 769.1 | 2500 |
| IGHX-20x156 | 825.8 | 800.5 | 2575 |
| IGHX-20x162 | 858.2 | 831.9 | 2650 |
Note: Dimensions are nominal and subject to change. Custom materials and configurations available on request.
