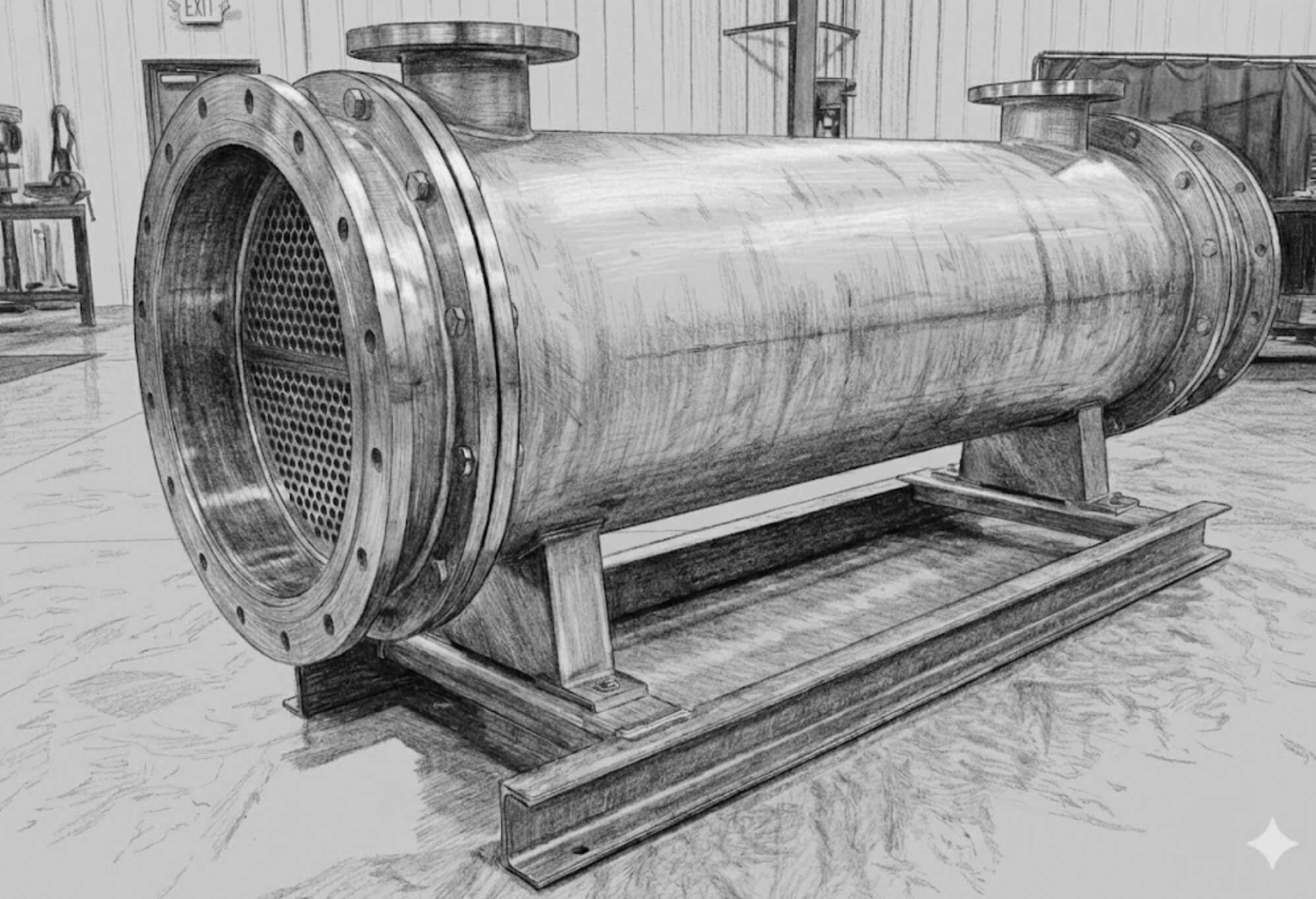

Product Photo (Click to View)

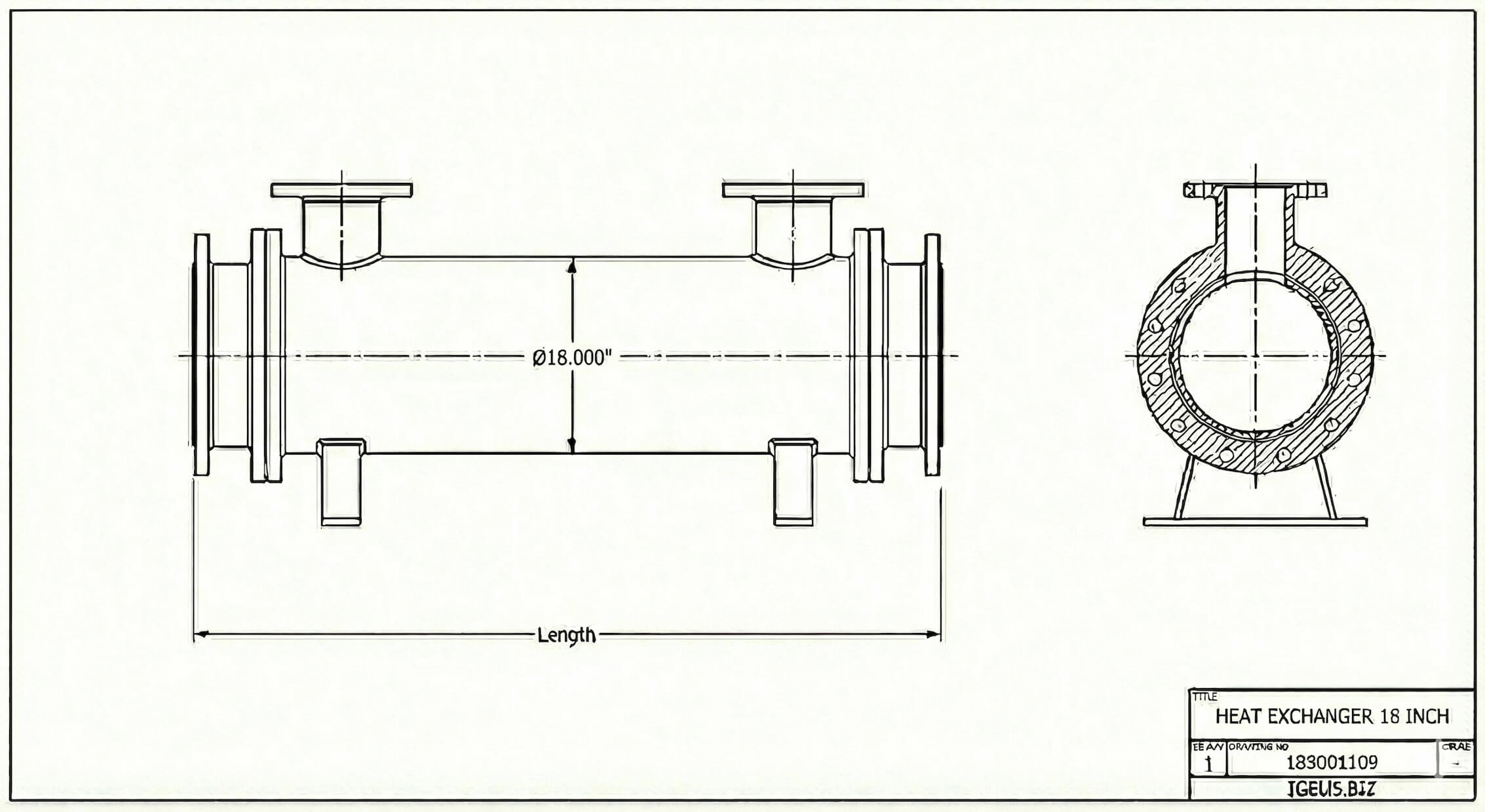

Technical Drawing (Click to View)
Standard 18" Diameter Heat Exchangers
Our 18" diameter shell and tube heat exchangers are massive industrial units designed for maximum heat transfer efficiency. They are suitable for the most demanding applications, offering exceptional durability and performance.
- Diameter: 18 Inches.
- Tubing: High-efficiency transfer tubes.
- Construction: Carbon Steel, Stainless Steel, or Titanium options.
- Applications: Power plants, large marine vessels, heavy chemical processing.
Dimensional Specifications
| Part Number (Dia x Length) | Surface Area (Sq. Ft.) - 2 Pass | Surface Area (Sq. Ft.) - 4 Pass | Approx. Shipping Weight (lbs) |
|---|---|---|---|
| IGHX-18x36 | 138.2 | 133.5 | 878 |
| IGHX-18x42 | 162.5 | 157.0 | 941 |
| IGHX-18x48 | 186.8 | 180.6 | 1003 |
| IGHX-18x54 | 211.2 | 204.2 | 1066 |
| IGHX-18x60 | 235.5 | 227.7 | 1128 |
| IGHX-18x66 | 259.9 | 251.3 | 1191 |
| IGHX-18x72 | 284.2 | 274.8 | 1253 |
| IGHX-18x78 | 316.7 | 306.2 | 1316 |
| IGHX-18x84 | 332.9 | 321.9 | 1378 |
| IGHX-18x90 | 357.2 | 345.5 | 1441 |
| IGHX-18x96 | 381.6 | 369.1 | 1503 |
| IGHX-18x102 | 405.9 | 392.6 | 1566 |
| IGHX-18x108 | 430.2 | 416.2 | 1628 |
| IGHX-18x114 | 454.6 | 439.7 | 1691 |
| IGHX-18x120 | 478.9 | 463.3 | 1753 |
| IGHX-18x126 | 503.3 | 486.8 | 1816 |
| IGHX-18x132 | 527.6 | 510.4 | 1878 |
| IGHX-18x138 | 552.0 | 533.9 | 1941 |
| IGHX-18x144 | 576.4 | 557.4 | 2004 |
| IGHX-18x150 | 600.8 | 580.9 | 2067 |
| IGHX-18x156 | 625.2 | 604.4 | 2130 |
| IGHX-18x162 | 649.6 | 627.9 | 2193 |
Note: Dimensions are nominal and subject to change. Custom materials and configurations available on request.
