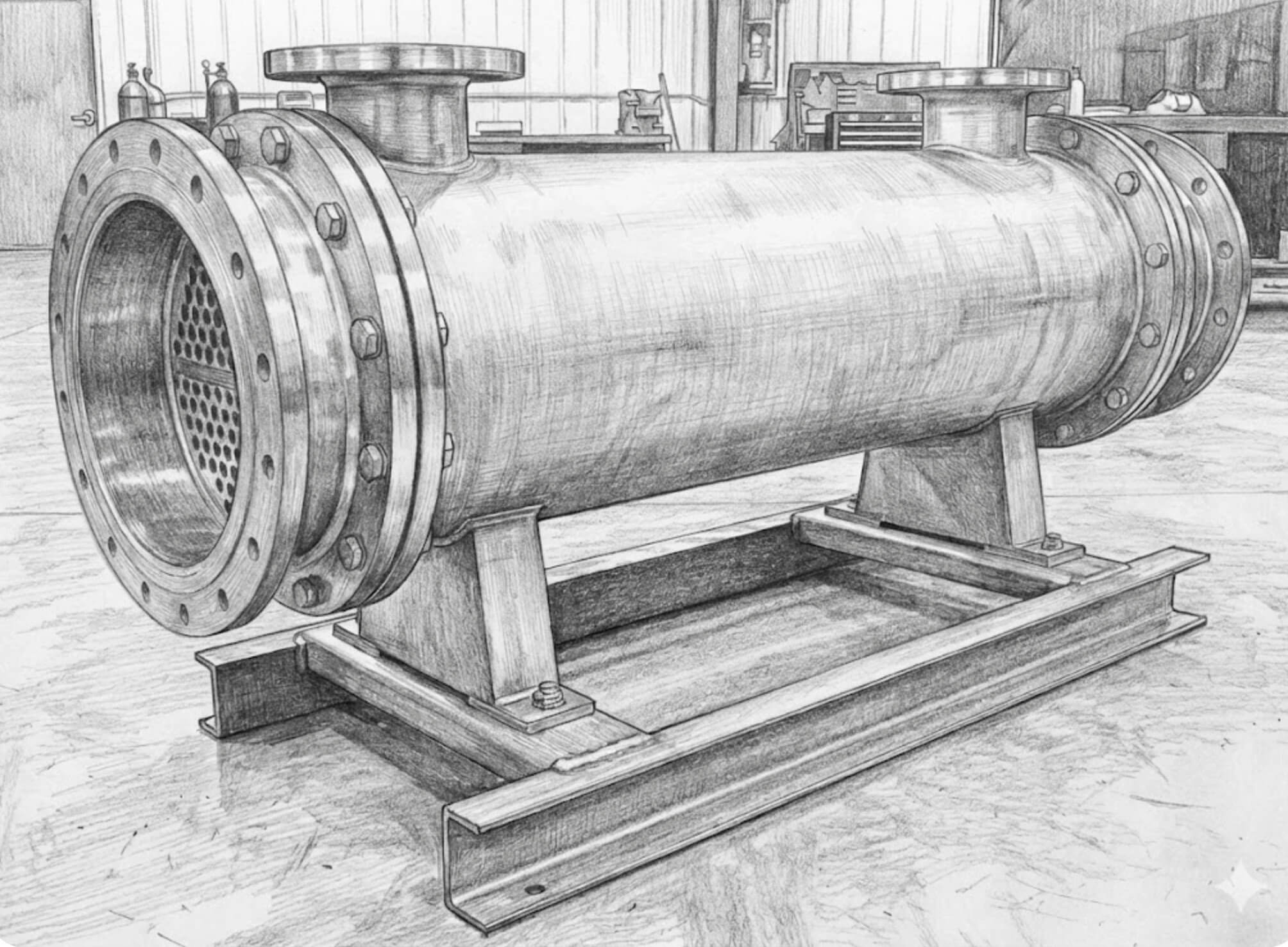

Product Photo (Click to View)

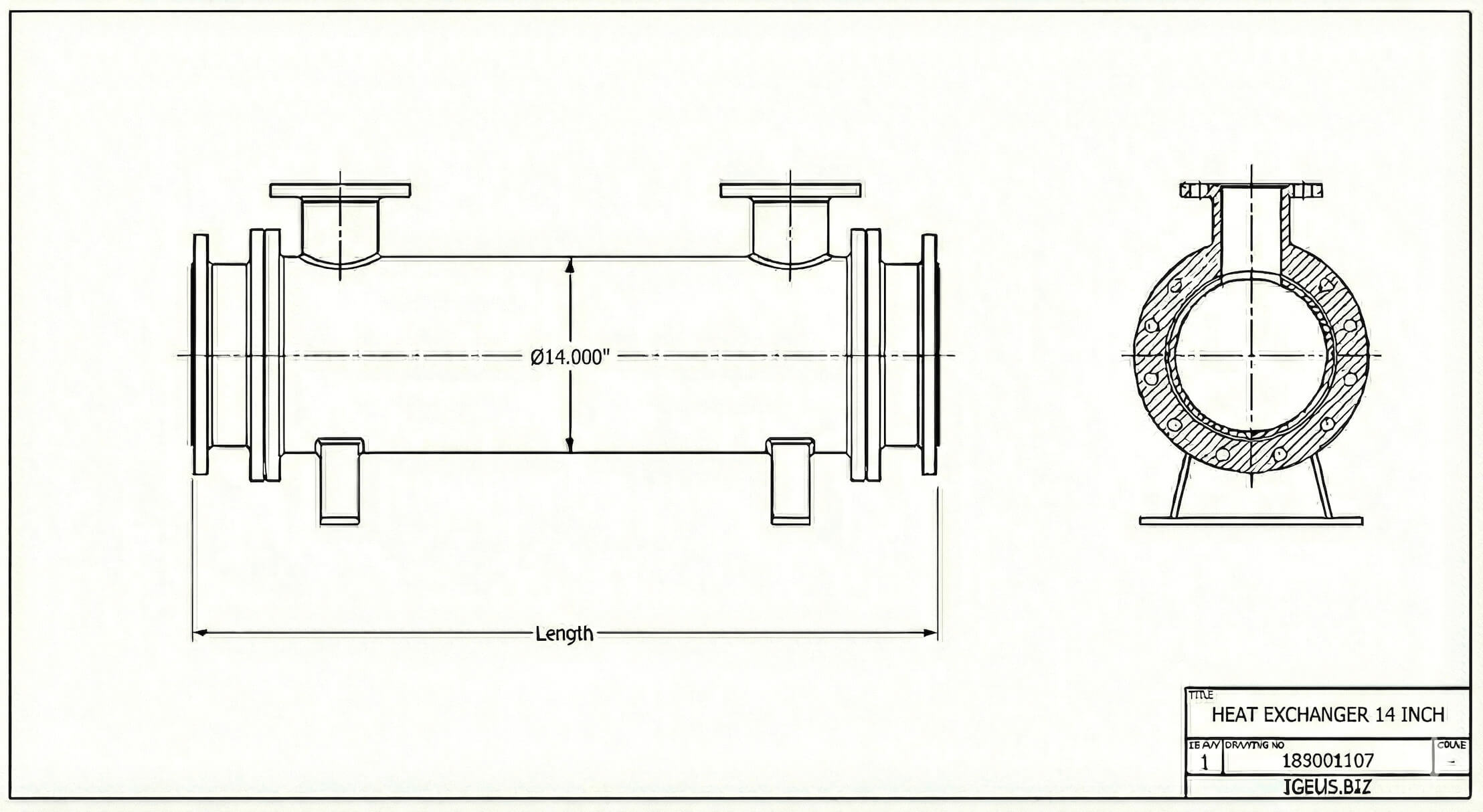

Technical Drawing (Click to View)
Standard 14" Diameter Heat Exchangers
Our 14" diameter shell and tube heat exchangers are high-capacity units designed for demanding industrial applications. They offer significant heat transfer surface area and robust construction for long-term reliability.
- Diameter: 14 Inches.
- Tubing: High-efficiency transfer tubes.
- Construction: Carbon Steel, Stainless Steel, or Titanium options.
- Applications: Large industrial cooling systems, oil refineries, chemical plants.
Dimensional Specifications
| Part Number (Dia x Length) | Surface Area (Sq. Ft.) - 2 Pass | Surface Area (Sq. Ft.) - 4 Pass | Approx. Shipping Weight (lbs) |
|---|---|---|---|
| IGHX-14x36 | 85.1 | 81.6 | 470 |
| IGHX-14x42 | 99.8 | 95.7 | 508 |
| IGHX-14x48 | 114.5 | 109.9 | 545 |
| IGHX-14x54 | 129.2 | 124.0 | 583 |
| IGHX-14x60 | 144.0 | 138.1 | 620 |
| IGHX-14x66 | 158.7 | 152.3 | 658 |
| IGHX-14x72 | 173.4 | 166.4 | 695 |
| IGHX-14x78 | 193.0 | 185.2 | 733 |
| IGHX-14x84 | 202.9 | 194.7 | 770 |
| IGHX-14x90 | 217.6 | 208.8 | 808 |
| IGHX-14x96 | 232.3 | 222.9 | 845 |
| IGHX-14x102 | 247.0 | 237.1 | 883 |
| IGHX-14x108 | 261.7 | 251.2 | 920 |
| IGHX-14x114 | 276.5 | 265.3 | 978 |
| IGHX-14x120 | 291.2 | 279.5 | 1037 |
| IGHX-14x126 | 305.9 | 293.6 | 1095 |
| IGHX-14x132 | 320.6 | 307.7 | 1153 |
| IGHX-14x138 | 335.4 | 321.9 | 1212 |
| IGHX-14x144 | 350.2 | 336.1 | 1271 |
| IGHX-14x150 | 365.0 | 350.3 | 1330 |
| IGHX-14x156 | 379.8 | 364.5 | 1389 |
| IGHX-14x162 | 394.6 | 378.7 | 1448 |
Note: Dimensions are nominal and subject to change. Custom materials and configurations available on request.
