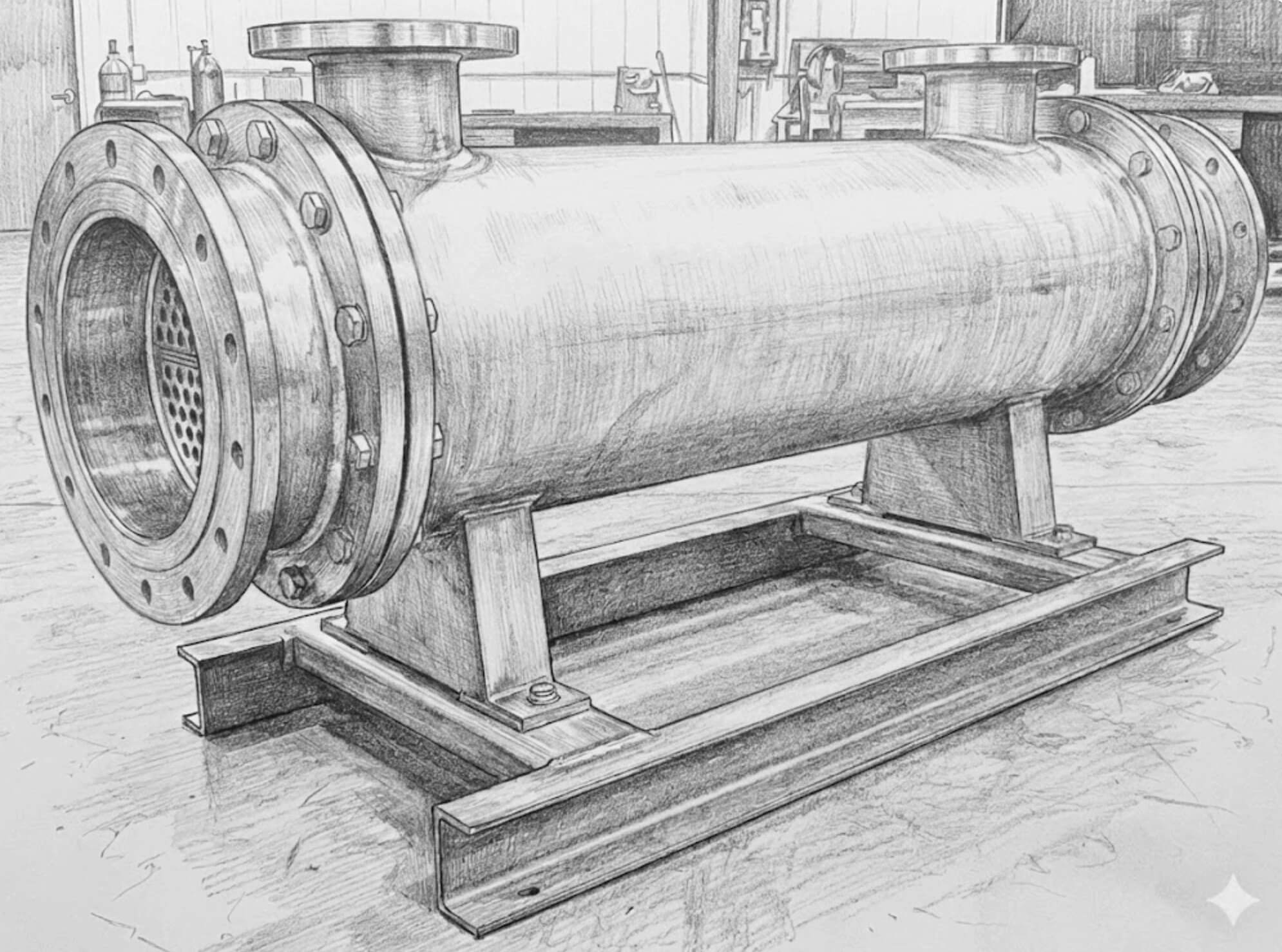

Product Photo (Click to View)

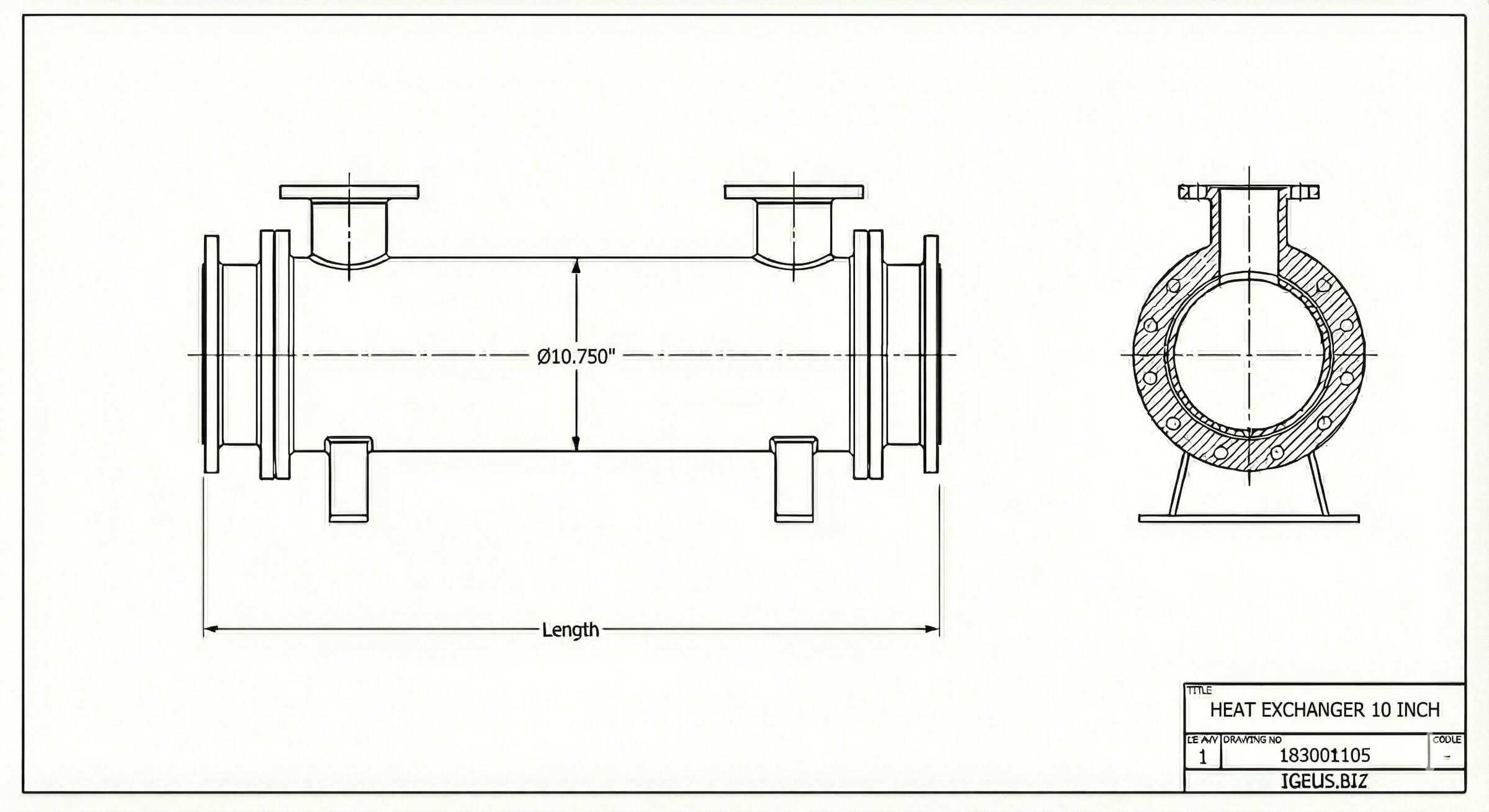

Technical Drawing (Click to View)
Standard 10" Diameter Heat Exchangers
Our 10" diameter shell and tube heat exchangers provide significant heat transfer surface area for larger industrial systems. They are engineered for reliability and high performance across a wide range of operating conditions.
- Diameter: 10 Inches.
- Tubing: High-efficiency transfer tubes.
- Construction: Carbon Steel, Stainless Steel, or Titanium options.
- Applications: High-capacity process cooling, steam condensing, chemical processing.
Dimensional Specifications
| Part Number (Dia x Length) | Surface Area (Sq. Ft.) - 2 Pass | Surface Area (Sq. Ft.) - 4 Pass | Approx. Shipping Weight (lbs) |
|---|---|---|---|
| IGHX-10x24 | 28.9 | 27.3 | 189 |
| IGHX-10x30 | 36.3 | 34.4 | 210 |
| IGHX-10x36 | 43.8 | 41.5 | 231 |
| IGHX-10x42 | 51.3 | 48.5 | 252 |
| IGHX-10x48 | 58.7 | 55.6 | 273 |
| IGHX-10x54 | 66.2 | 62.7 | 295 |
| IGHX-10x60 | 73.6 | 69.7 | 316 |
| IGHX-10x66 | 81.1 | 76.8 | 338 |
| IGHX-10x72 | 88.6 | 83.9 | 359 |
| IGHX-10x78 | 98.5 | 93.3 | 381 |
| IGHX-10x84 | 103.5 | 98.0 | 402 |
| IGHX-10x90 | 110.9 | 105.1 | 423 |
| IGHX-10x96 | 118.4 | 112.1 | 444 |
| IGHX-10x102 | 125.9 | 119.2 | 466 |
| IGHX-10x108 | 133.3 | 126.3 | 488 |
| IGHX-10x114 | 140.8 | 133.3 | 510 |
| IGHX-10x120 | 148.2 | 140.4 | 532 |
| IGHX-10x126 | 155.7 | 147.5 | 568 |
| IGHX-10x132 | 163.2 | 154.5 | 603 |
| IGHX-10x138 | 170.6 | 161.6 | 639 |
| IGHX-10x144 | 178.0 | 168.7 | 675 |
| IGHX-10x150 | 185.4 | 175.8 | 711 |
Note: Dimensions are nominal and subject to change. Custom materials and configurations available on request.
