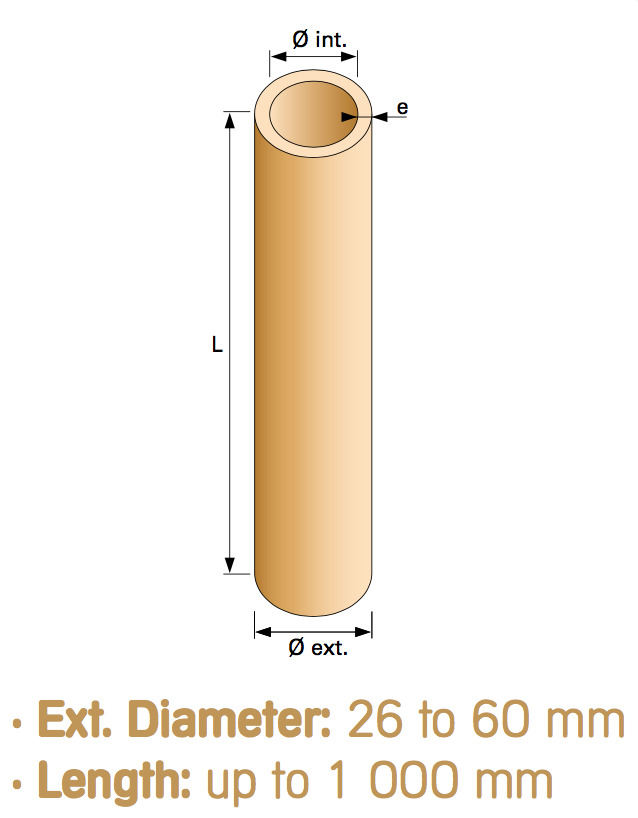

Technical Drawing (Click to View)
Features & Benefits
These sintered porous bronze seamless tubes can be used as filters, silencers, fluidizers, applicator rollers, spargers, flame arresters, flow controllers, pressure equalizers, breathers, and many other useful parts. Contact us for customized designs.
- Material: Bronze (89% Cu / 11% Sn) construction.
- Durability: Good durability against most aggressive fluids.
- Temperature: Usable over a wide range of temperatures.
- Resistance: High mechanical resistance (Isostatically pressed).
- Maintenance: Regenerable through backflush, chemical, thermal, or ultrasonic treatment.
- Retention: 9 PORAL grades available (03 to 60).
Series BLR (Metric)
| Type | Ext. Ø (mm) | Length (mm) | Wall Thickness (mm) | Filtration Surface S (cm²) |
|---|---|---|---|---|
| BLR 26 | 26 | 48 | 3 | 39 |
| BLR 32 | 32 | 250 | 3 | 200 |
Series BS (Imperial)
| Type | Ext. Ø (Inches) | Length (Inches) | Wall Thickness (mm) | Filtration Surface S (cm²) |
|---|---|---|---|---|
| BS | 2" | 30" | 3 | 1173 |
Note on Filtration: In liquids, retention at 98% of solid particles ranges from 3.8 μm (Grade 03) to 190 μm (Grade 60). In gases, retention ranges from 0.7 μm to 13 μm.
