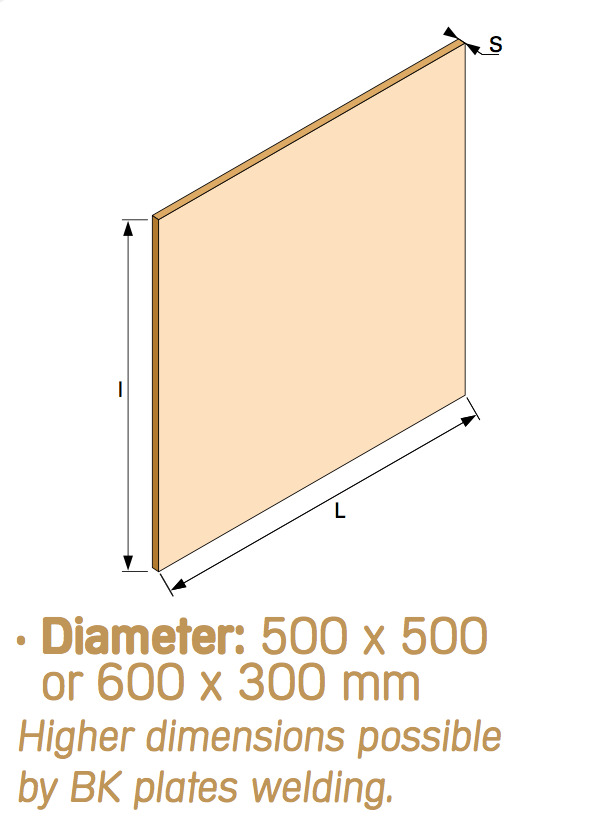

Technical Drawing (Click to View)
Features & Benefits
Sintered bronze porous plates are used for flame arrestors, flow restrictors, setters, limiters, high purity filters, chromatography parts, spargers, diffusers, sterilizing processes, and more. Contact us for customized designs.
- Material: Bronze (89% Cu / 11% Sn) construction.
- Durability: Good durability against most aggressive fluids.
- Temperature: Usable over a wide range of temperatures.
- Maintenance: Regenerable through backflush, chemical, thermal, or ultrasonic treatment.
- Retention: 9 PORAL grades available (03 to 60).
Designation / Ordering Guide
| Type | Height (mm) | Width (mm) | Filtration Surface S (cm²) |
|---|---|---|---|
| BK 4 | 500 | 500 | 2500 |
| BK 5 | 600 | 300 | 1800 |
| BK 8 | 500 | 250 | 1250 |
| BK 10 | 300 | 300 | 900 |
| BK 16 | 250 | 250 | 625 |

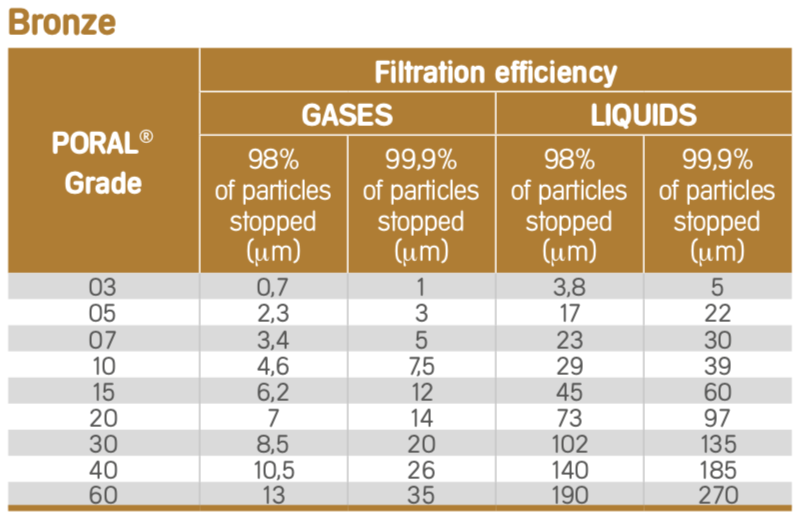

Note on Filtration: In liquids, retention at 98% of solid particles ranges from 3.8 μm (Grade 03) to 190 μm (Grade 60). In gases, retention ranges from 0.7 μm to 13 μm.
