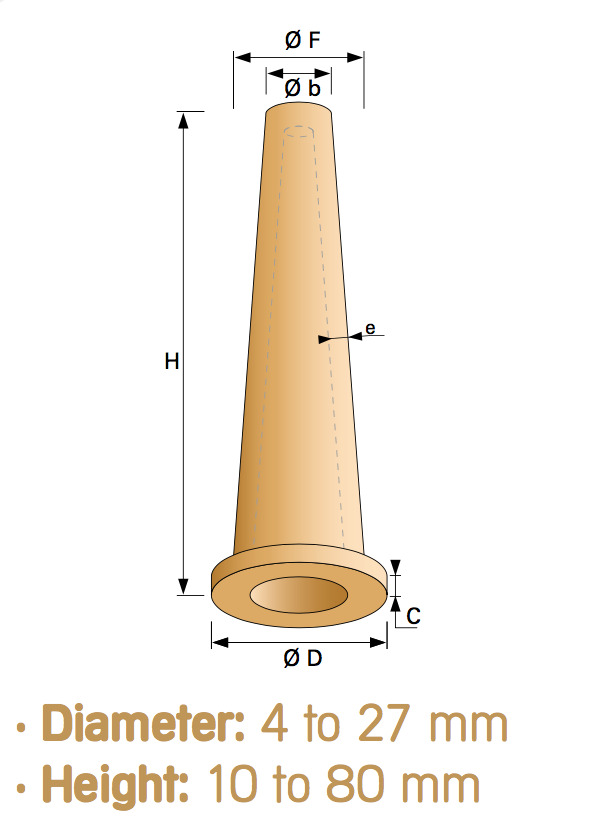

Technical Drawing (Click to View)
Features & Benefits
Sintered metal bronze cones are used as silencers and filters in pneumatic, hydraulic, or other equipment. Our standard products cover a wide range of applications. Contact us for customized designs.
- Material: Bronze (89% Cu / 11% Sn) construction.
- Durability: Good durability against most aggressive fluids.
- Temperature: Usable over a wide range of temperatures.
- Maintenance: Regenerable through backflush, chemical, thermal, or ultrasonic treatment.
- Retention: 9 PORAL grades available (03 to 60).
Designation / Ordering Guide
| Item Model | Ø F (mm) | Height (mm) | Ø D (mm) | Wall Thickness (mm) | Flange Thickness C (mm) | Ø b (mm) | Surface S (cm²) |
|---|---|---|---|---|---|---|---|
| BCN 8 | 13 | 20 | 3 | 8 | 1.5 | 2.5 | 4 |
| BCN 12 | 17 | 40 | 10 | 12 | 2 | 2.5 | 6 |
| BCN 15 | 21 | 60 | 20 | 15 | 2.5 | 3 | 8 |
| BCN 21 | 27 | 80 | 40 | 21 | 3 | 3 | 10 |
Note on Filtration: In liquids, retention at 98% of solid particles ranges from 3.8 μm (Grade 03) to 190 μm (Grade 60). In gases, retention ranges from 0.7 μm to 13 μm.
