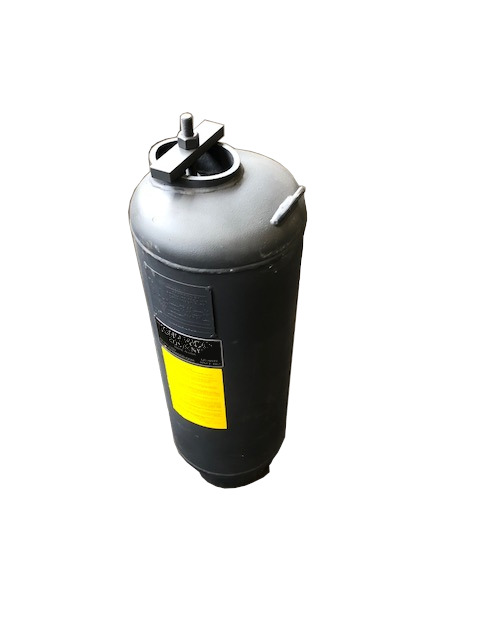

Product Photo (Click to View)

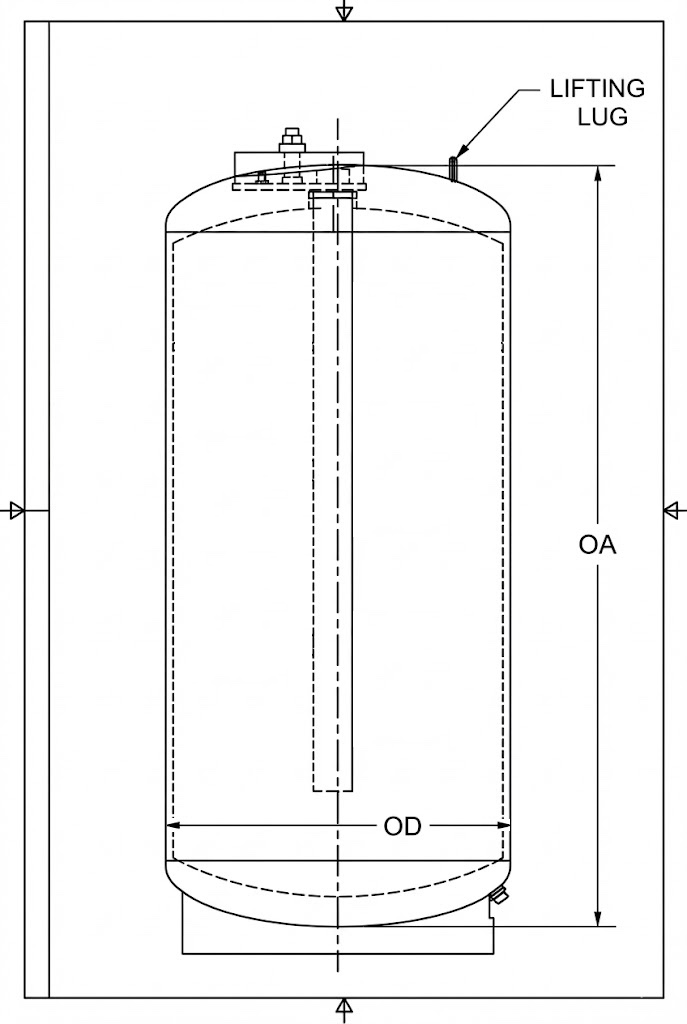

Technical Drawing (Click to View)
Standard Vertical Top Outlet Bladder Tanks
Our Vertical Top Outlet Bladder Tanks are built in accordance with the requirements of the ASME Boiler and Pressure Vessel Code. These hydropneumatic expansion tanks utilize a heavy-duty replaceable bladder to separate the air cushion from the water, preventing waterlogging and ensuring efficient pressure control.
- Code Compliance: ASME Section VIII Div 1.
- Design: Replaceable Bladder (Separates air & water).
- Orientation: Vertical with Top Outlet.
- Customization: Custom sizes and higher pressure ratings available.
Dimensional Specifications
| Part Number | Capacity | Size (OD x OA) | Weight |
|---|---|---|---|
| BTVR-264-36-125 | 264 Gallons | 36" x 67" | 559# |
| BTVR-317-36-125 | 317 Gallons | 36" x 79" | 637# |
| BTVR-370-36-125 | 370 Gallons | 36" x 91" | 704# |
| BTVR-422-48-125 | 422 Gallons | 48" x 64" | 780# |
| BTVR-528-48-125 | 528 Gallons | 48" x 77" | 921# |
| BTVR-660-48-125 | 660 Gallons | 48" x 94" | 1,055# |
Note: Dimensions are nominal and subject to change. Custom sizes and pressure ratings available on request.
