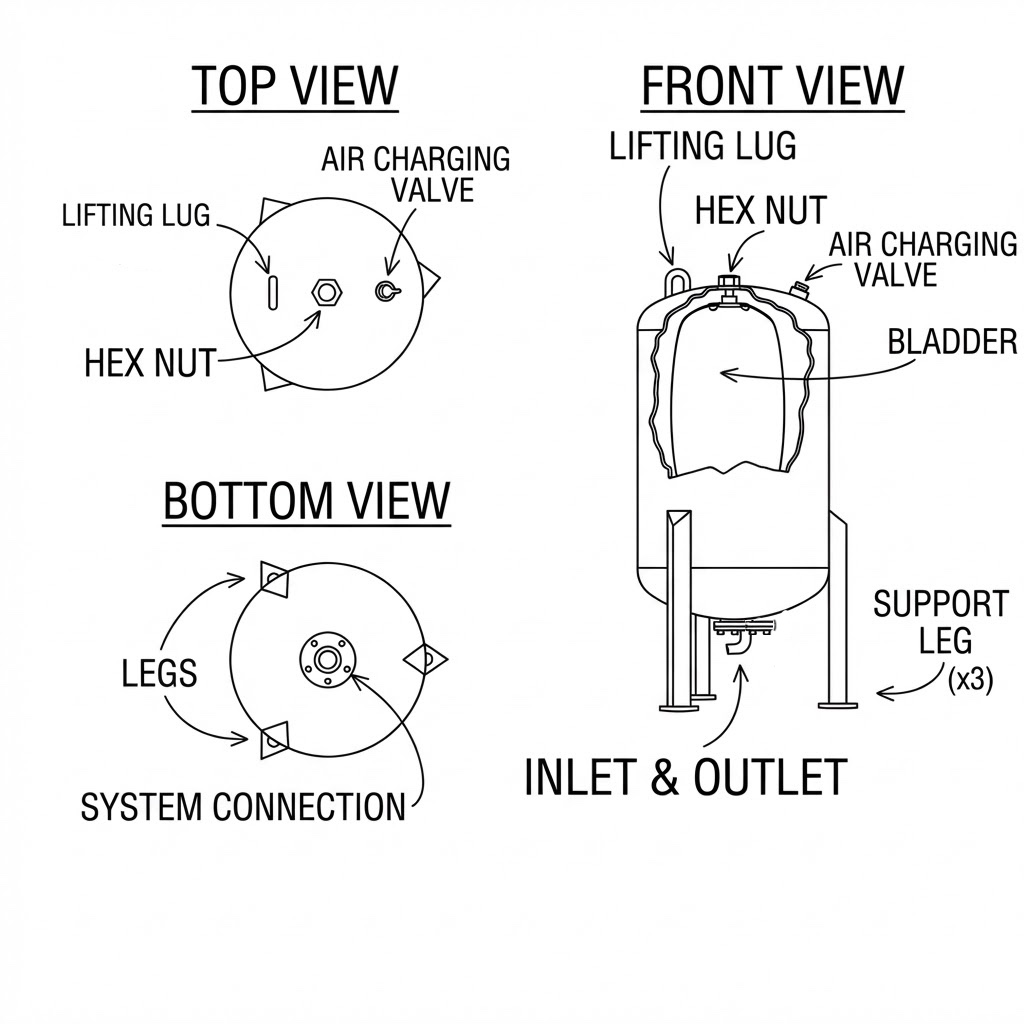

Technical Drawing (Click to View)
Standard Vertical Bottom Outlet Bladder Tanks
Our Vertical Bottom Outlet Bladder Tanks are built in accordance with the requirements of the ASME Boiler and Pressure Vessel Code. These tanks are designed for pressure boosting and surge protection, featuring a replaceable bladder design that eliminates water-to-metal contact for extended tank life.
- Code Compliance: ASME Section VIII Div 1.
- Design: Replaceable Bladder (Separates air & water).
- Orientation: Vertical with Bottom Outlet.
- Customization: Custom sizes and higher pressure ratings available.
Dimensional Specifications
| Part Number | Capacity | Size (OD x OA) | Weight |
|---|---|---|---|
| BBVL-264-36-125 | 264 Gallons | 36" x 67" | 565# |
| BBVL-317-36-125 | 317 Gallons | 36" x 79" | 636# |
| BBVL-370-36-125 | 370 Gallons | 36" x 91" | 707# |
| BBVL-422-48-125 | 422 Gallons | 48" x 64" | 938# |
| BBVL-528-48-125 | 528 Gallons | 48" x 77" | 1102# |
| BBVL-660-48-125 | 660 Gallons | 48" x 94" | 1258# |
| BBVL-793-48-125 | 793 Gallons | 48" x 122" | 1627# |
| BBVL-1056-54-125 | 1056 Gallons | 54" x 132" | 2200# |
Note: Dimensions are nominal and subject to change. Custom sizes and pressure ratings available on request.
